Screw listing
Maintenance and Service Guide 7–9

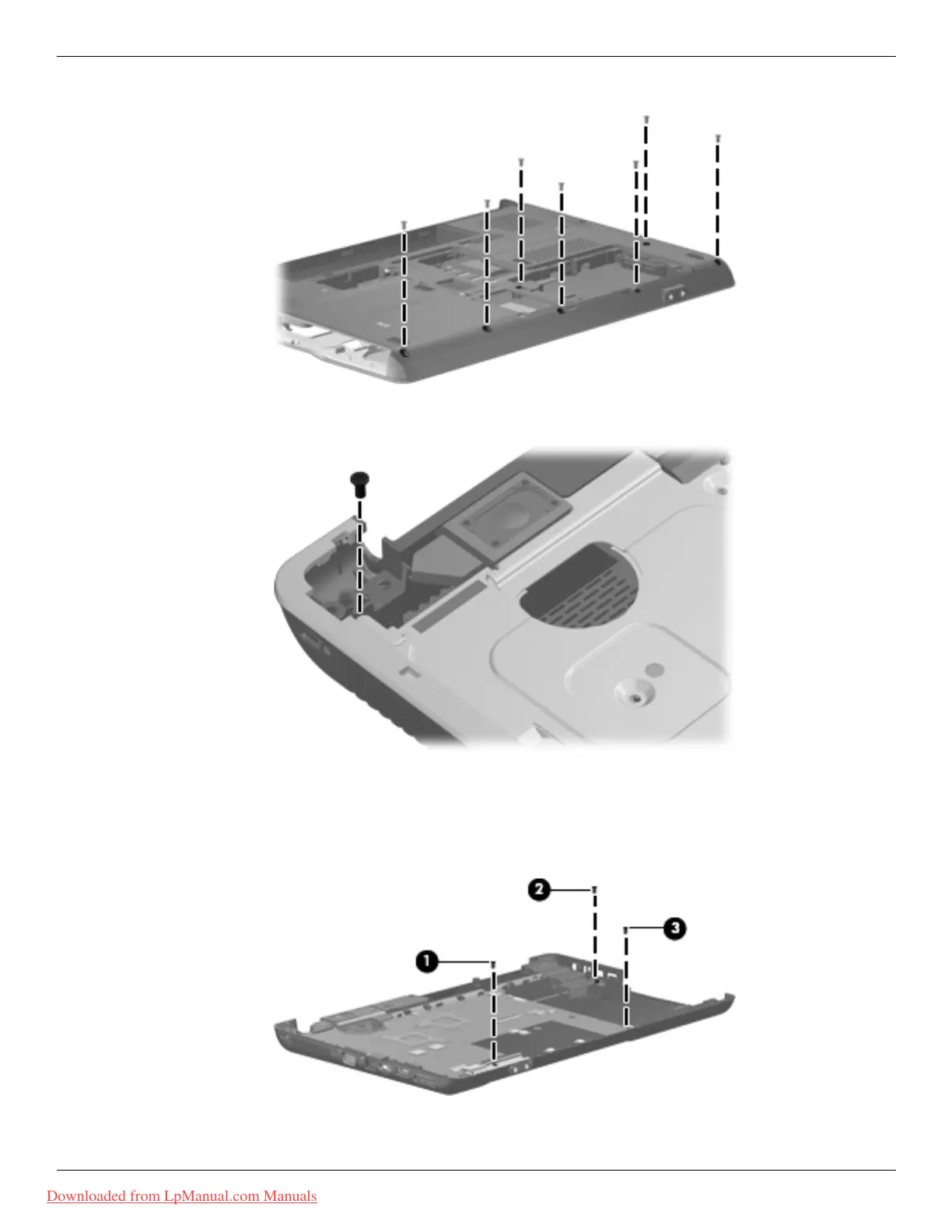

Where used: 7 screws that secure the top cover to the base enclosure
Where used: One screw that secures the top cover to the base enclosure
Where used:
1 One screw that secures the audio board to the base enclosure
2 One screw that secures the USB board to the base enclosure
3 One screw that secures the system board to the base enclosure
