Removal and replacement procedures
Maintenance and Service Guide 4–37
Remove the system board:

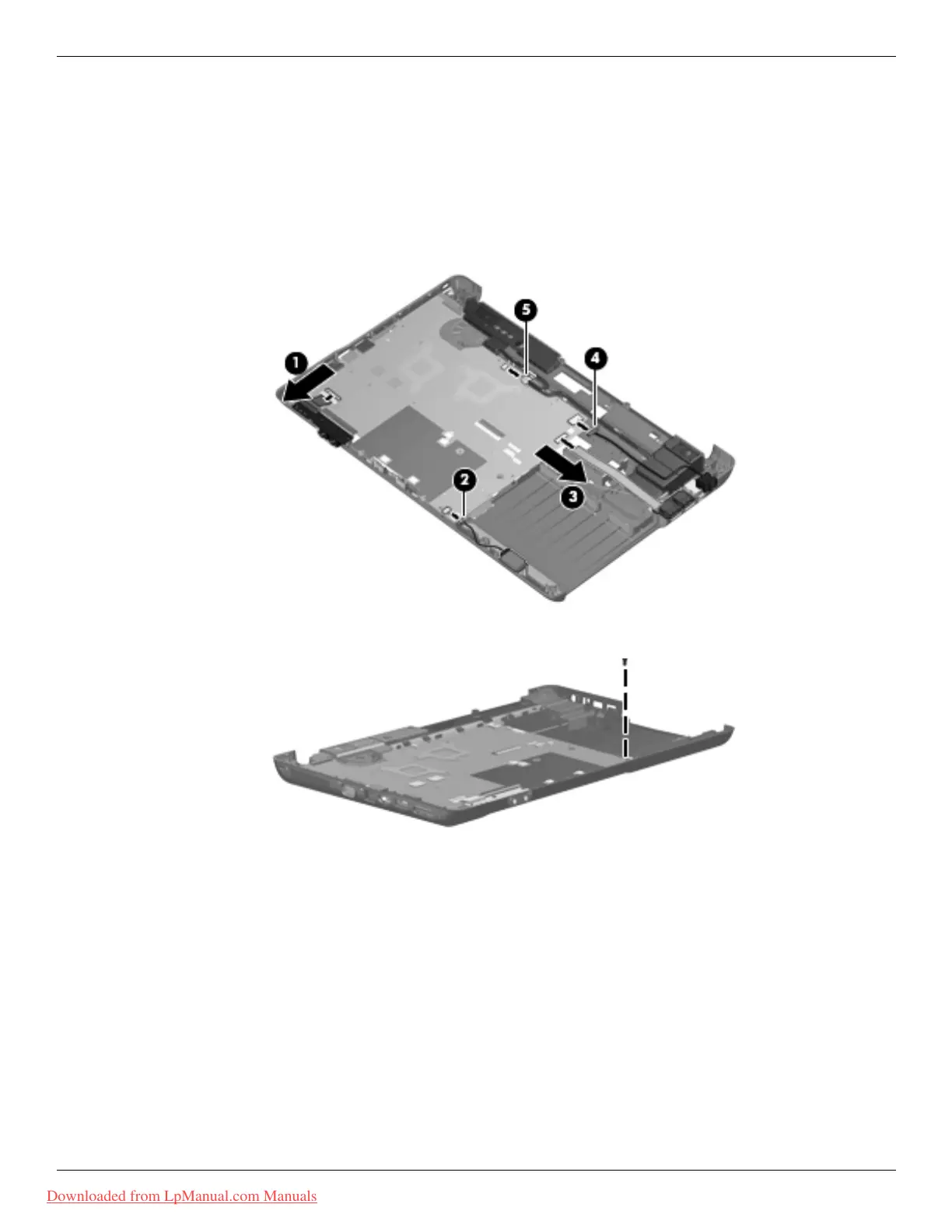

1. Disconnect the following cables from the system board:
1 Audio board cable
2 Bluetooth module cable (select models only)
3 USB board cable
4 Power connector cable
5 Speaker cable
2. Remove the Phillips PM2.5×6.5 screw that secures the system board to the base enclosure.
