4–38 Maintenance and Service Guide
Removal and replacement procedures

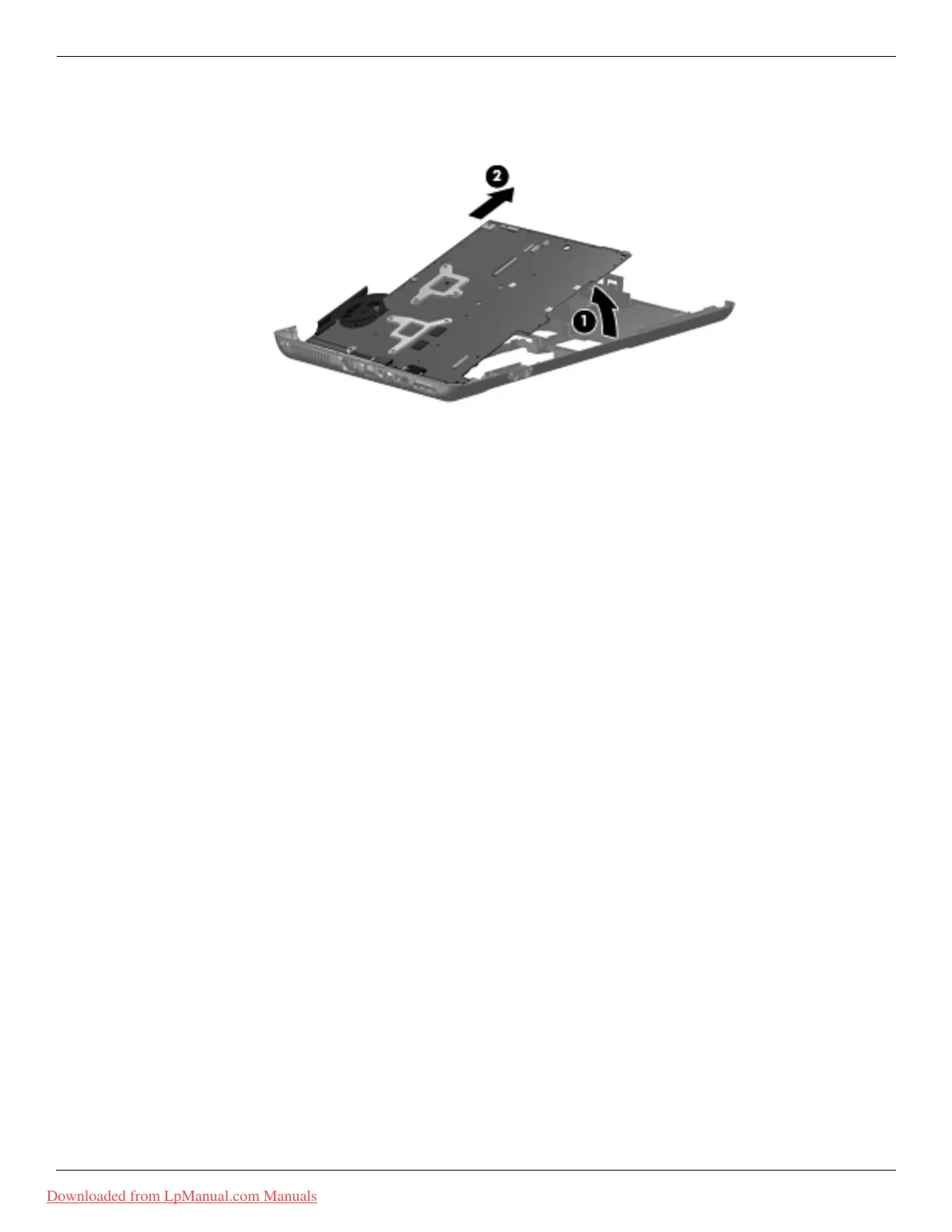

3. Lift the right side 1 of the system board until it rests at an angle.
4. Slide the system board 2 to the right at an angle until the connectors on the left side of the system board
disengage from the base enclosure.
Reverse this procedure to install the system board.
