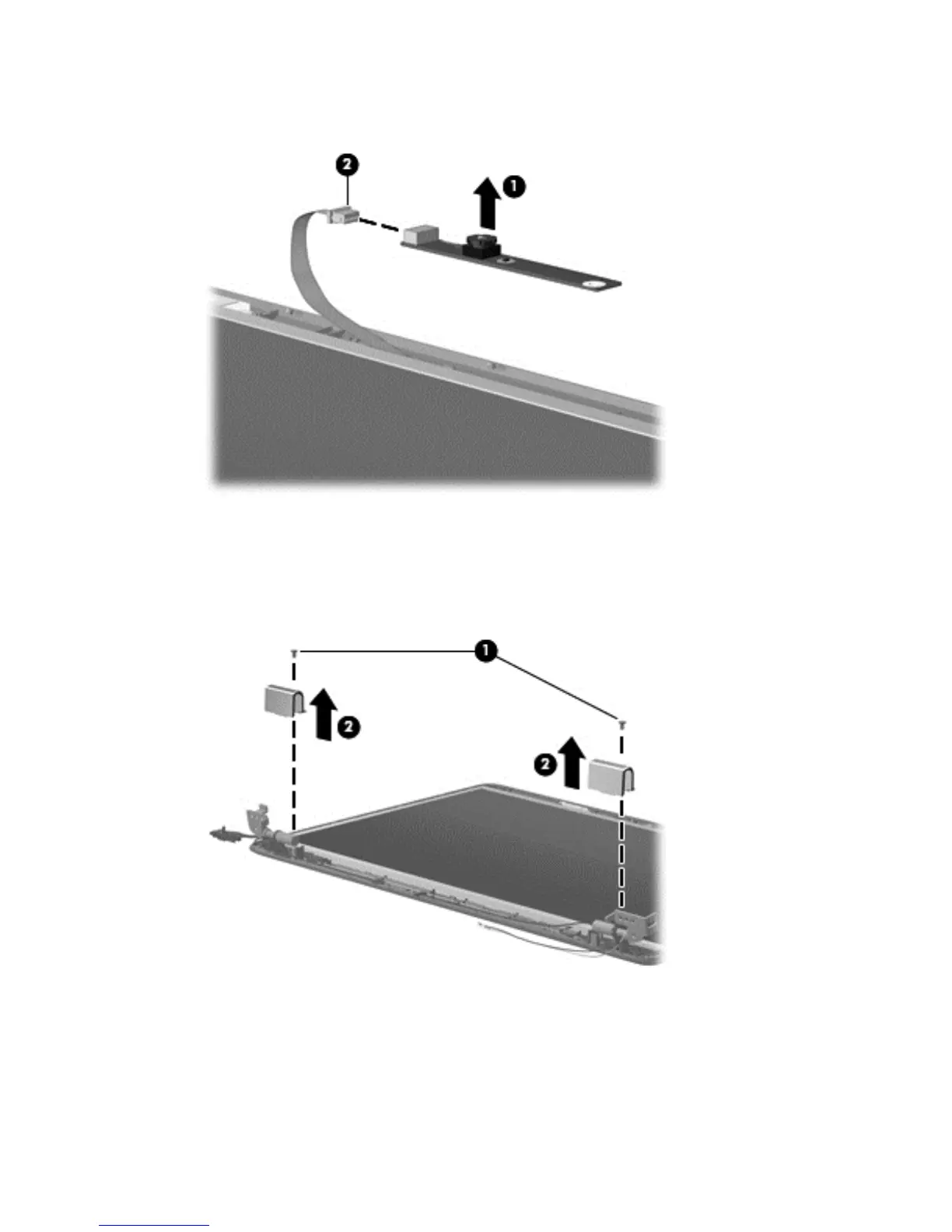

12. Disconnect the webcam module cable (1) from the webcam module, and remove the webcam
module (2). The webcam module is available using spare part number 606001-001.
Reverse this procedure to install the webcam module.
13. To replace the display hinge covers, remove the two Phillips PM2.5×6.0 screws (1) that secure
each hinge to the display enclosure.
14. Remove the display hinge covers (2). The display hinge covers are available using spare part
number 606017-001.
Reverse this procedure to install the display hinge covers.
15. To replace the display panel, remove eight phillips PM2.5×6.0 screws (1) that secure the display
panel to the display enclosure.
Component replacement procedures 71
