e. Display assembly (see Display assembly on page 68)
f. System board (see
System board on page 74)
g. Fan/heat sink assembly (see
Fan/heat sink assembly on page 77)

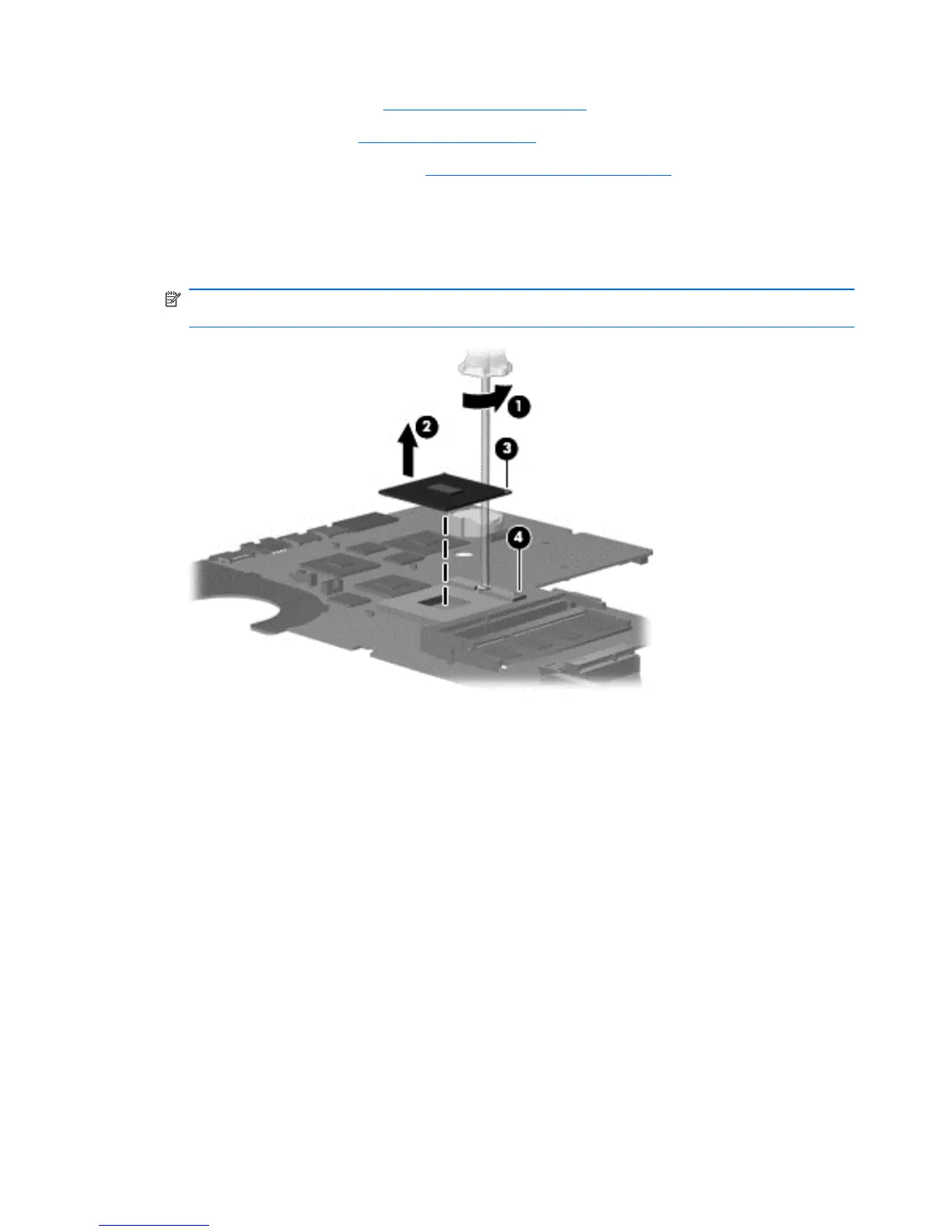

Remove the processor:
1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4)
embossed on the processor socket when you install the processor.
Reverse this procedure to install the processor.
82 Chapter 4 Removal and replacement procedures
