5.1 home audio installation procedure
To connect a six-channel (5.1 speaker) home audio
system to the PC:
1 Turn off the PC.
2 Turn off the receiver/amplifier.
3 Connect the front stereo mini-jack end of a
Y adapter cable into the lime green Audio
Line Out connector that matches the back of
your PC.
Connect the left and right ends of the
Y adapter cable into the front left (L) and right
(R) inputs on the back of the receiver/
amplifier.
4 If you have rear speakers, connect the rear
stereo mini-jack end of a Y adapter cable into
the Audio Line In (blue) or the Rear Speaker
Out (black) connector that matches the back of
your PC.
■ Connect the left and right ends of the
Y adapter cable into the rear left (L)
and right (R) inputs on the back of the
receiver/amplifier.
5 If you have a center/subwoofer speaker,
connect the stereo mini-jack of a Y adapter
cable into the microphone (pink) connector or
the center speaker/subwoofer (gold)
connector that matches the back of your PC.
■ Connect the left and right ends of the
Y adapter cable into the center/subwoofer
inputs on the back of the receiver/amplifier
(6/5.1 or higher channel system).
■ Plug the Y adapter cable into the
subwoofer connector on the back of the
receiver even if a subwoofer is not used.
6 Turn on the receiver/amplifier.
7 Select the receiver/amplifier input that the
Y adapter cables are plugged into.
8 Turn on the PC.
9 After the audio system is connected to the PC,
configure the audio software for sound output
for your PC model:
■ Type 3 connectors: See “Configuring
Audio Output with Multi-channel Sound
Manager” on page 42.
■ Type 6 connectors: See “Configuring
Audio Output with Sound Effect Manager”
on page 44.
■ Sound card: See “Configuring Audio
Output with a Sound Card” on page 47.

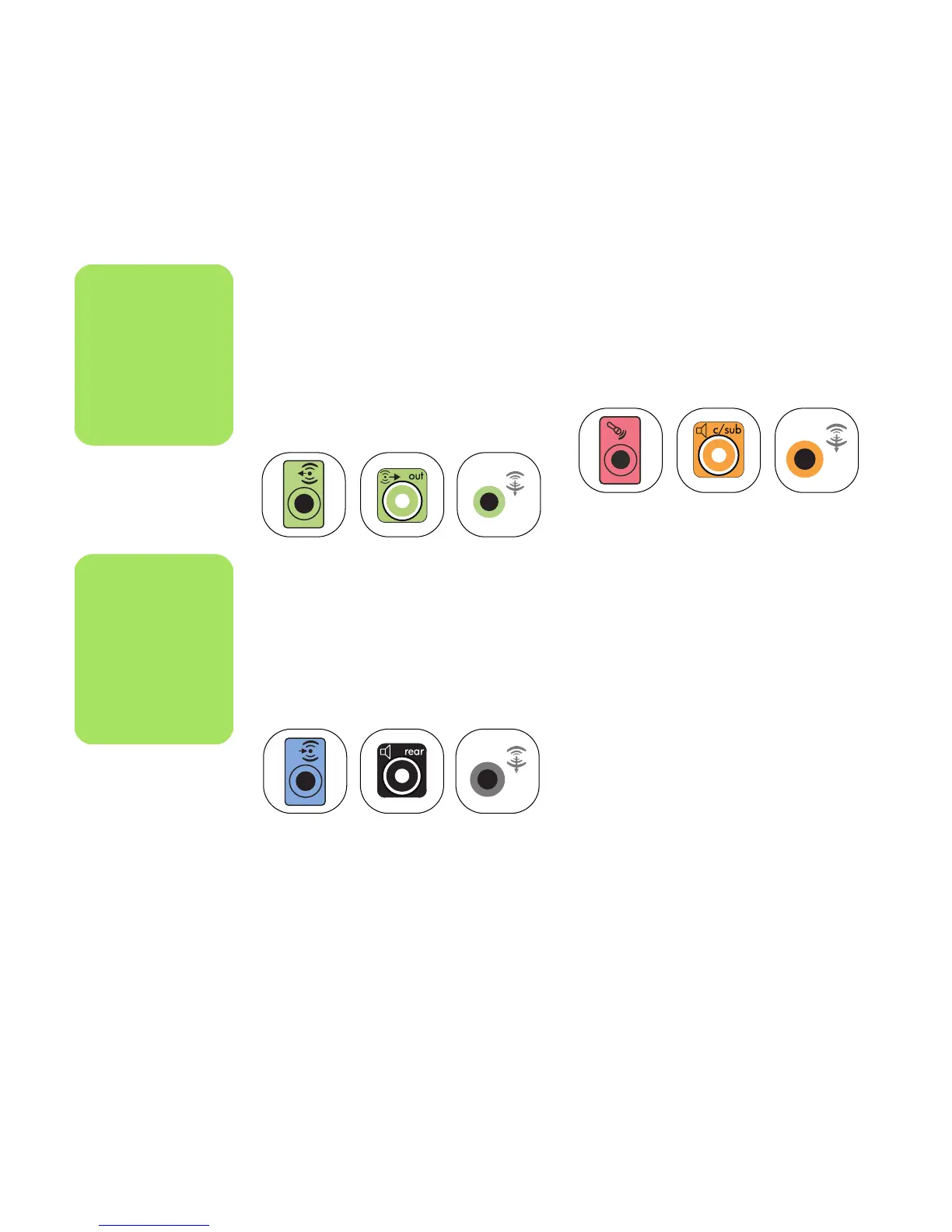

OUT
3
6
S
n
Receiver/amplifier
input connectors may
be labeled Surround,
5.1, or 6 Channel
inputs, CD, DVD, or
DVD In.
n
Type 3 is three
connectors
Type 6 is six
connectors
Type S is sound card
IN
3
6
S
3
6
S
