Drive LEDs

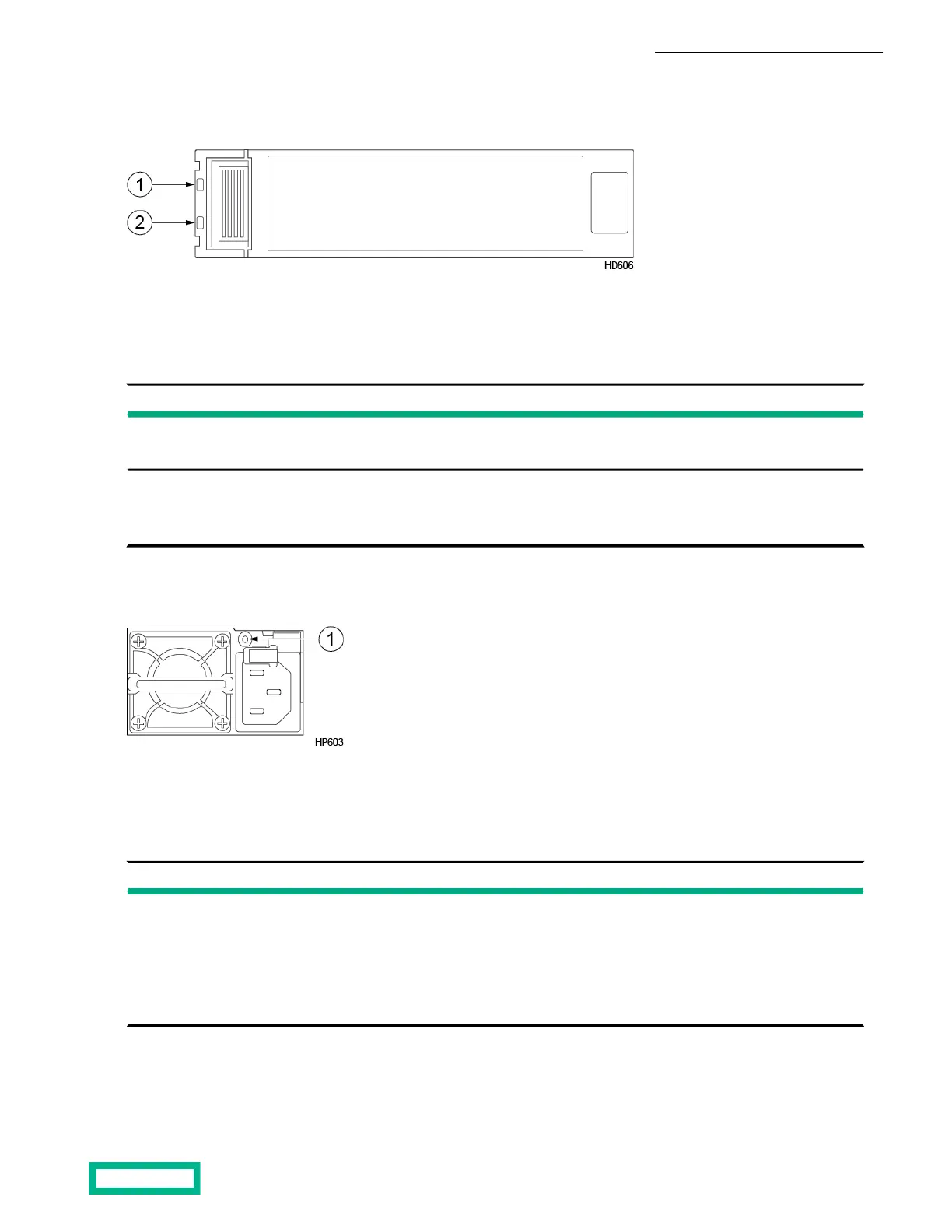

The following shows the drive and LED indicator lights and describes their functions.
21 Drive faultDrive operation
Each drive carrier has two LEDs. The following table describes the LEDs.
Table 6: Drive LEDs
StatusLED
• Amber indicates that the drive has failed or been removed
• LED off indicates normal drive operation
Drive fault (bottom left)
• Solid green indicates that the drive is online and ready
• Blinking green twice per second indicates that the drive is being initialized
• Blinking green five times per second indicates read/write activity on the drive
Drive operation (top left)
Power Supply LED
The following shows the power supply LED indicator light and describes its function.
1 Power supply status
The following table describes the power supply LED.
Table 7: Power supply LED
StatusLED
• Solid green indicates that the power supply is working properly.
• Red indicates that the power supply has failed. Replace the power supply.
• Amber indicates the power supply is in standby mode. Press and release the power
button on the right front handle of the chassis.
• No color (LED off) indicates unknown status. Inspect the power source and then
power on the array again. If the LED remains off, replace the power supply.
Power supply status
System Information Label
On the rear of the chassis, the system information label is located at the bottom left in a thin tray. The label extends out for
reference.
Array Components 51
