Removing the Pedestal Sides
Follow these steps to remove the pedestal sides.
1. Unscrew the thumb screws in the rear of the server. See Figure 4-2 (page 18).

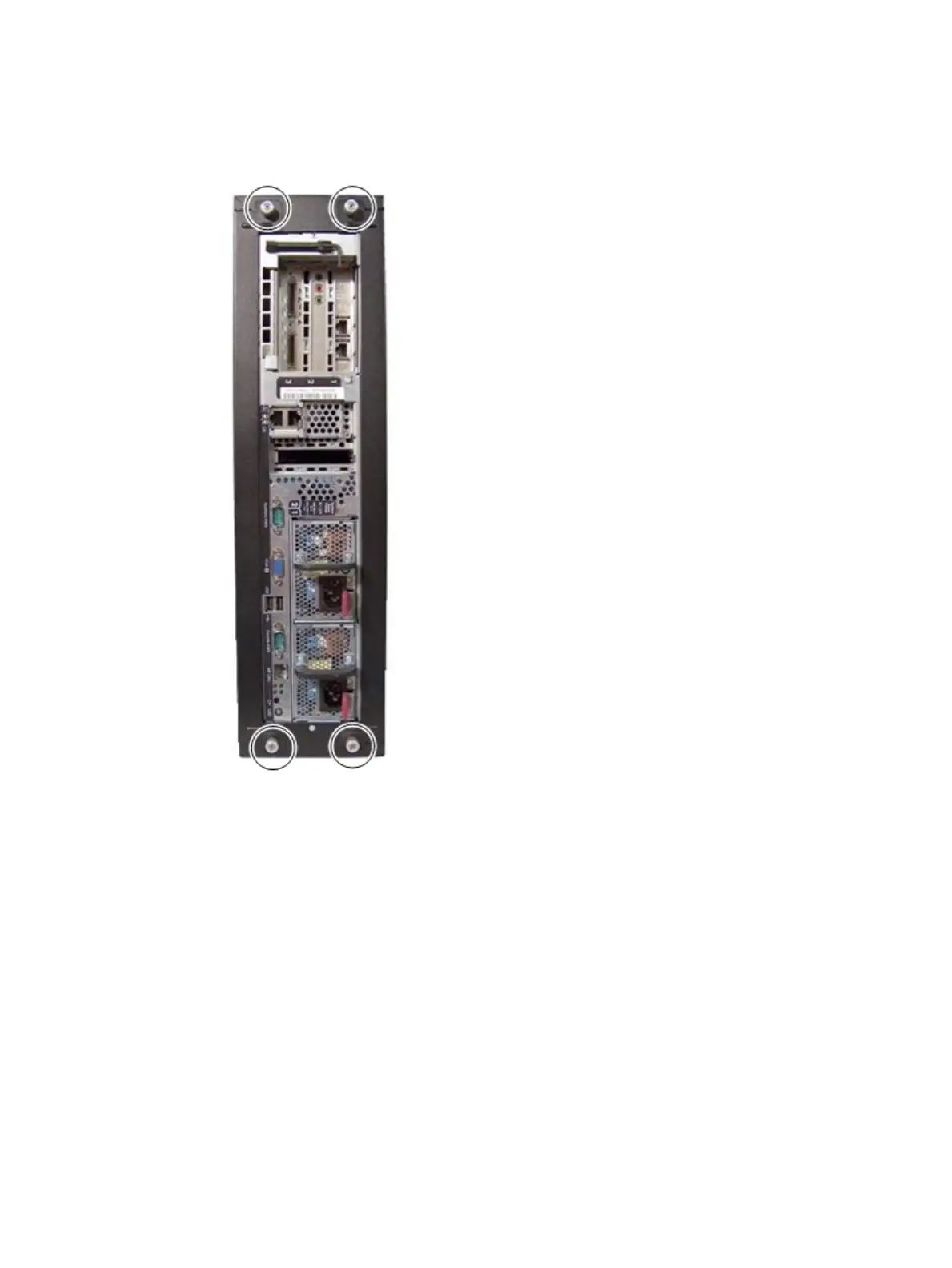

Figure 4-2 Unscrewing the Thumbscrews
2. Pull back on the side component using the finger grips.
3. Once the pedestal side has moved about 1/4 inch the side can be removed.
4. Repeat these steps for the other panel.
18 Removing the Server from the Pedestal Kit
