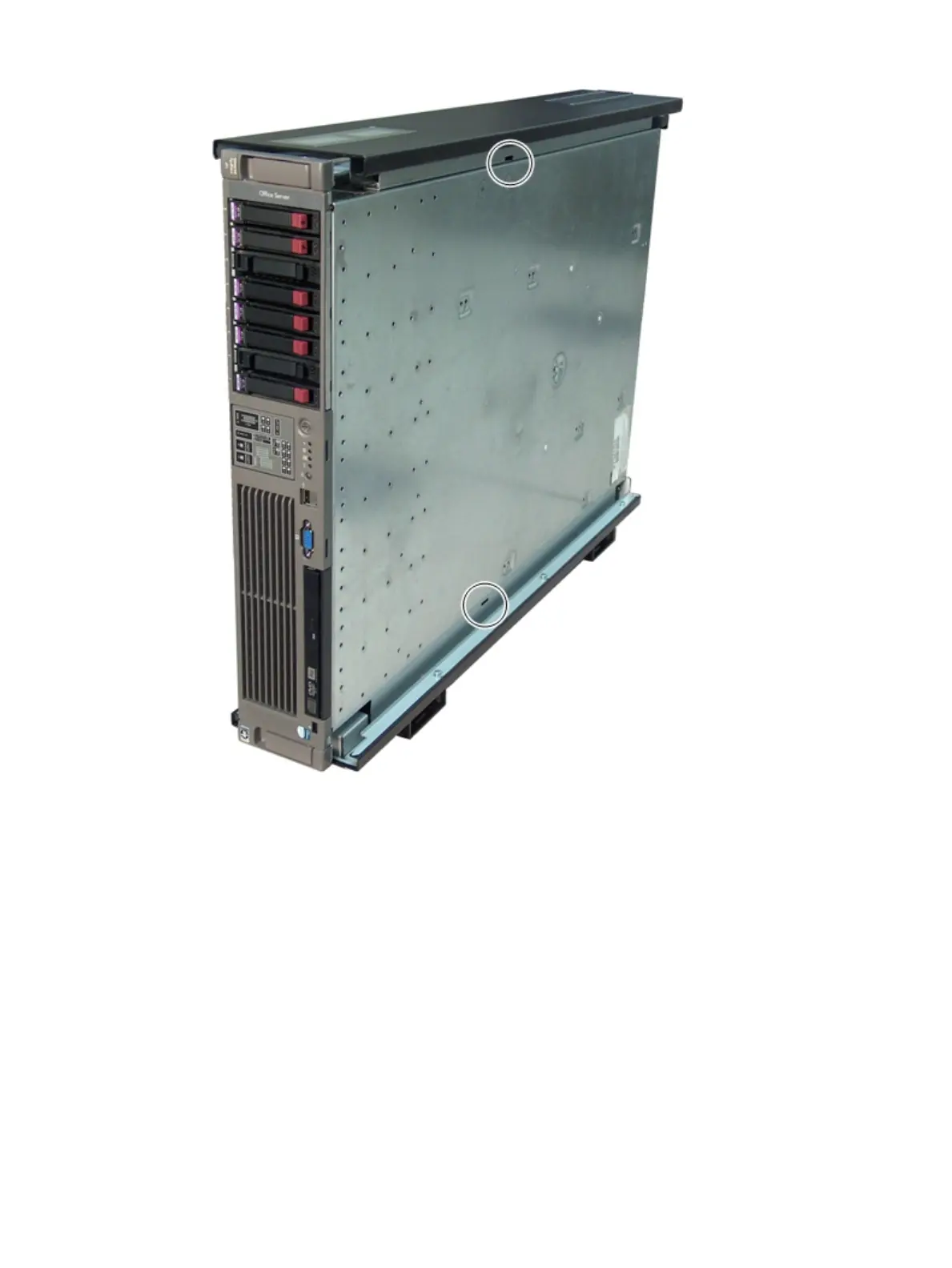

Figure 4-4 Unlocking the Pedestal Top Piece from the Server
3. Slide the pedestal top piece toward the back of the server to release it from the server.
4. Once the pedestal component has moved about 1/4 inch, the lock releases, and you can
remove the screwdriver.
5. Pull the pedestal kit top piece away from the server.
6. Lay the server flat on the server top (upside down) with the pedestal kit bottom piece hanging
off the work surface. Figure 4-5 (page 21) shows the server in the correct position to remove
the pedestal kit bottom piece.
20 Removing the Server from the Pedestal Kit
