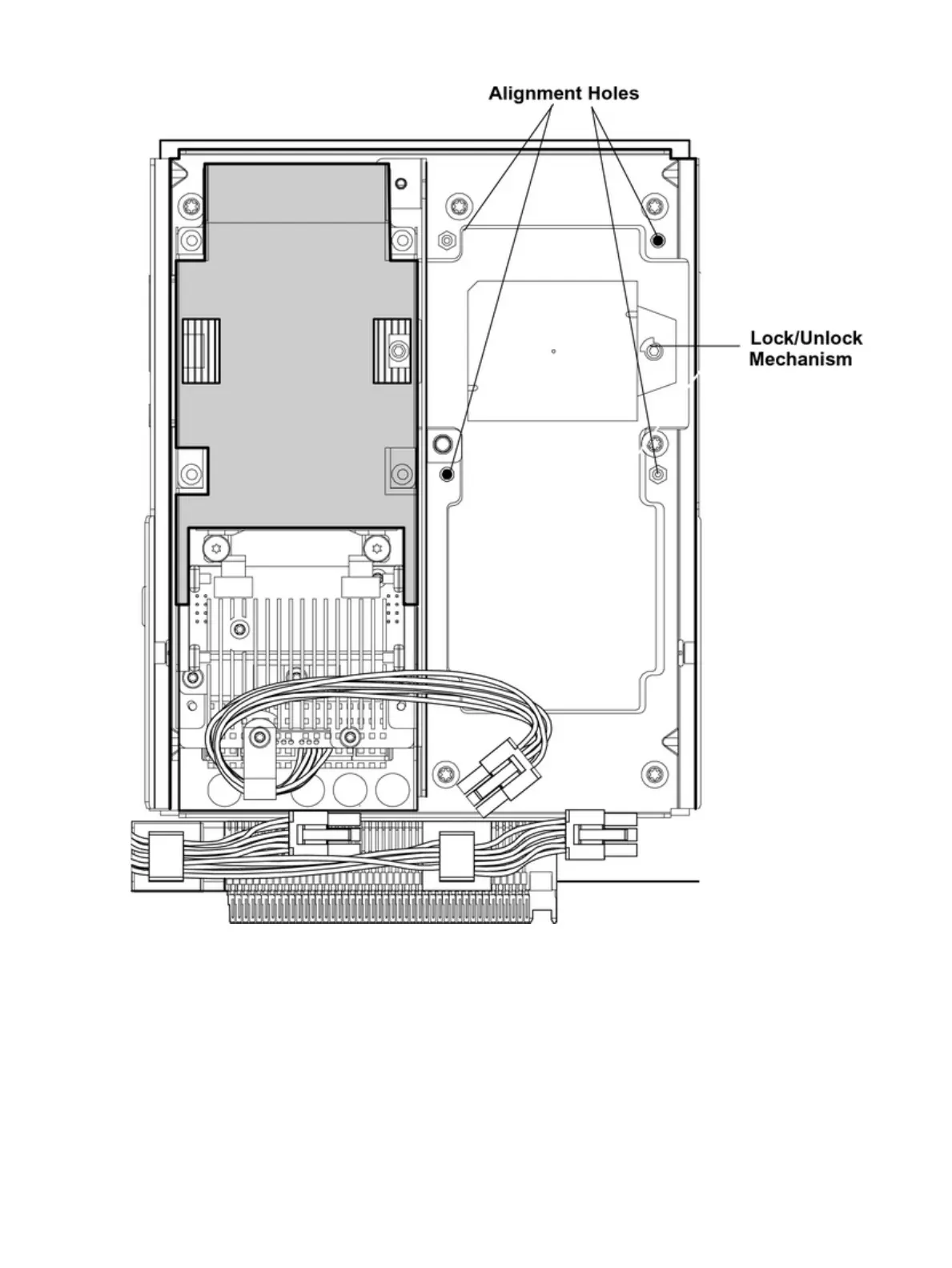

Figure 17 Processor Alignment Holes and Lock/Unlock Mechanism
Installing the Server into a Rack or Pedestal Mount
This section provides instructions on how to install the server into a rack or pedestal mount.
Installing the Server into a Rack
The following information describes how to install the server into an HP rack or an approved non-HP
rack.
HP Rack
HP servers that are installed into racks are shipped with equipment mounting slides. An installation
guide comes with each set of slides: HP 3-7U Quick Deploy Rail System Installation Instructions for
38 Installing the System
