Component Description Function
(9) Windows Key Press to open the Start menu on the screen.
(10) Microphone Use for phone conversations, voice notes, or voice commands.
(11) Answer/Send Key Press to answer a call, send an SMS, or view the Dialer screen.
(12) LEDs View to check the battery, network, or device status.
●
Solid red – Charging
●
Flashing red
◦
Continuous – Low battery
◦
3 times only – Unable to charge
◦
3 times, repeating every 5 seconds – Battery temperature
too high
●
Solid green – Battery fully charged and connected to power
source
●
Flashing amber – Network not detected or SIM card missing

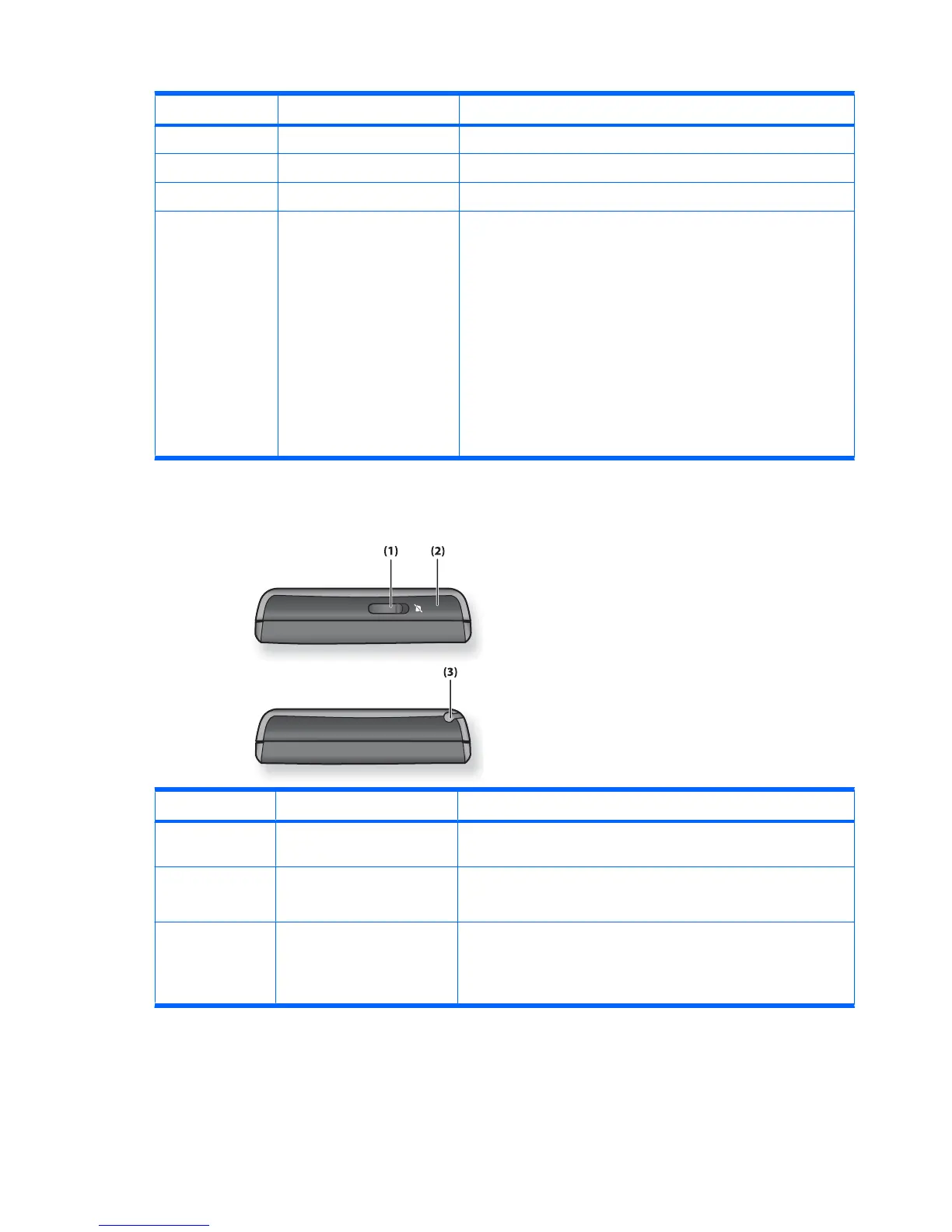

Top and bottom panel components
Component Description Function
(1) Ringer/Sound Switch Use to switch off incoming call rings and system notification alert
sounds.
(2) GPS Antenna This component detects GPS signals.
NOTE: This component will not be visible externally.
(3) Stylus Use to select elements on the screen and input information.
Slide down to remove the stylus.
Slide up to place the stylus.
4 Chapter 3 Components
