Introducing the Switch
Back of the Switch
Back of the Switch
Power Connector
The switches do not have a power switch. They are powered on when the
external AC/DC power adapter is connected to the switch and to a power
source. The external AC/DC power adapter supplies 12 volts DC to the switch
and automatically adjusts to any AC voltage between 100-240 volts and either
50 or 60 Hz. No voltage range settings are required.

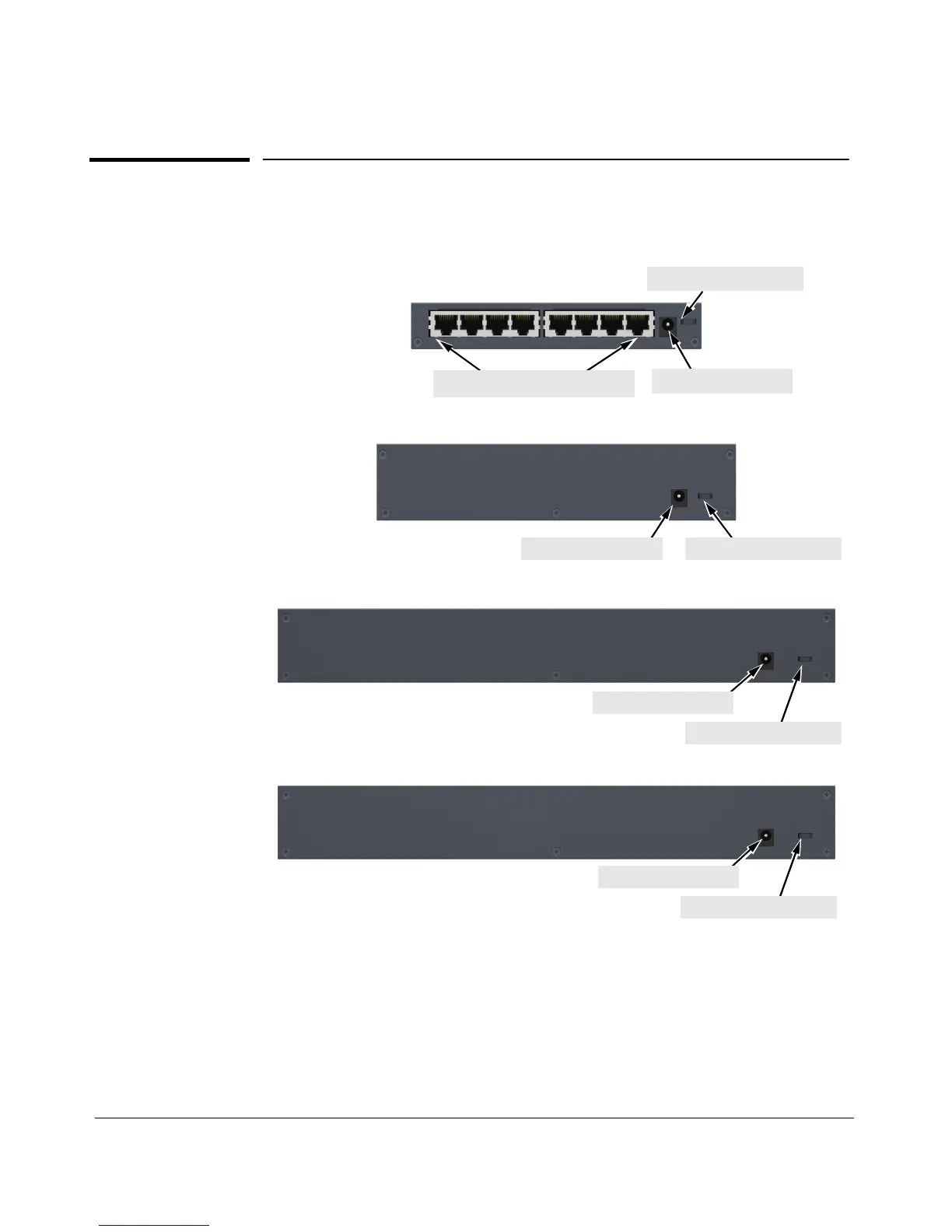

DC power connector
HP V1410-8 Switch (J9661A)
HP V1410-16 Switch (J9662A)
HP V1410-24 Switch (J9663A)
Power cord retention ring
DC power connector Power cord retention ring
10/100Base-TX RJ-45 ports
DC power connector
HP V1410-24-2G Switch (J9664A)
DC power connector
Power cord retention ring
Power cord retention ring
