Installing the switch
Installation procedure

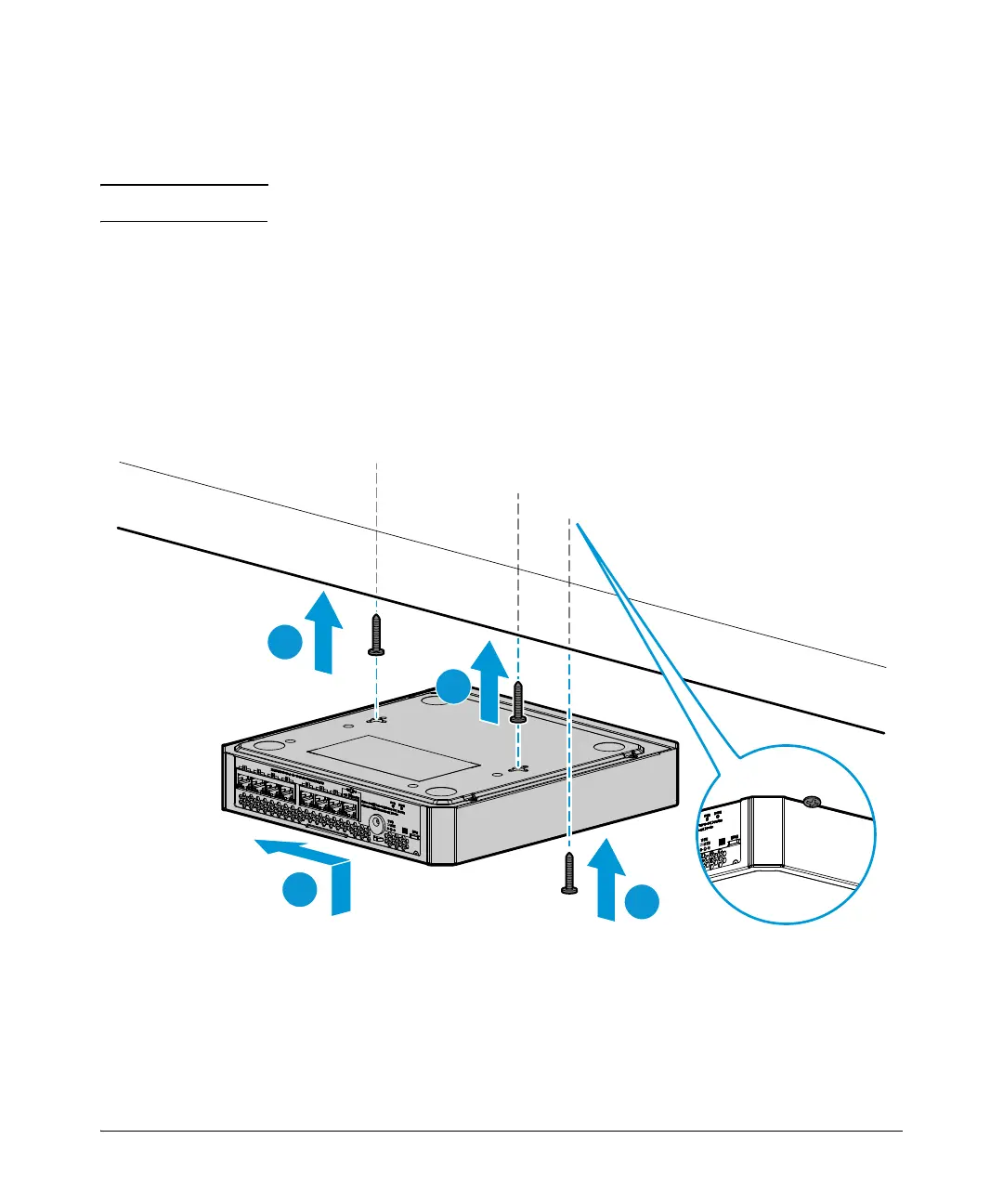

Mounting under a horizontal surface.
You can mount the switch under a horizontal surface.
Caution Mount the switch only to a surface that is at least 1-inch (25.4 mm) thick.
1. Install two 3/4-inch (19 mm) M4 screws (included) into the mounting surface.
The base of the screw head should be distanced approximately 2 mm from the
wall face. Position the screws 6.3 inches (160 mm) apart for the PS1810-8G
Switch. Use the wall anchors if necessary.
2. Position the switch over the screws and slide to lock in place.
3. Optional: Install the third screw at the side of the switch to prevent it from sliding
out of the locked position.
