HP J9980A Installation And Getting Started Guide

A-11
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000BASE-T connections require that all four pairs of wires be connected.

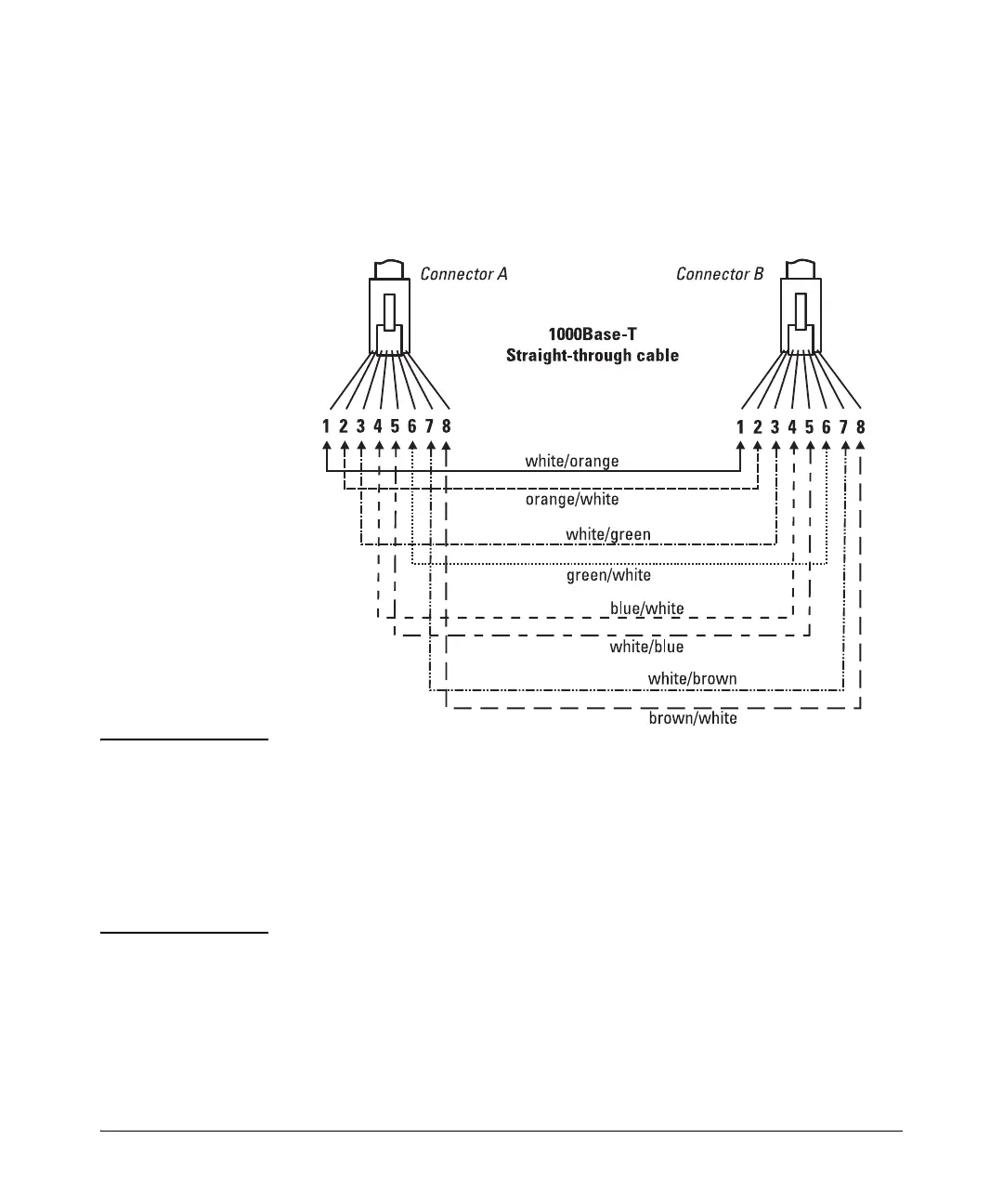

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.

HP J9980A Specifications

General

Category	Switch
Jumbo Frame Support	Yes
PoE	No
Layer	Layer 2
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	J9980A
Uplink Ports	4
MAC Address Table Size	16, 000 entries
Management	Web, SNMP, CLI
Form Factor	Rack-mountable
Power Supply	Internal
Humidity	5% to 95% (noncondensing)
