HP J9980A User Manual

4-13
Switching Features
Spanning Tree
Port STP Settings
To configure these settings on one or more interfaces, select the interfaces on the Spanning Tree Configuration
page and click Edit.

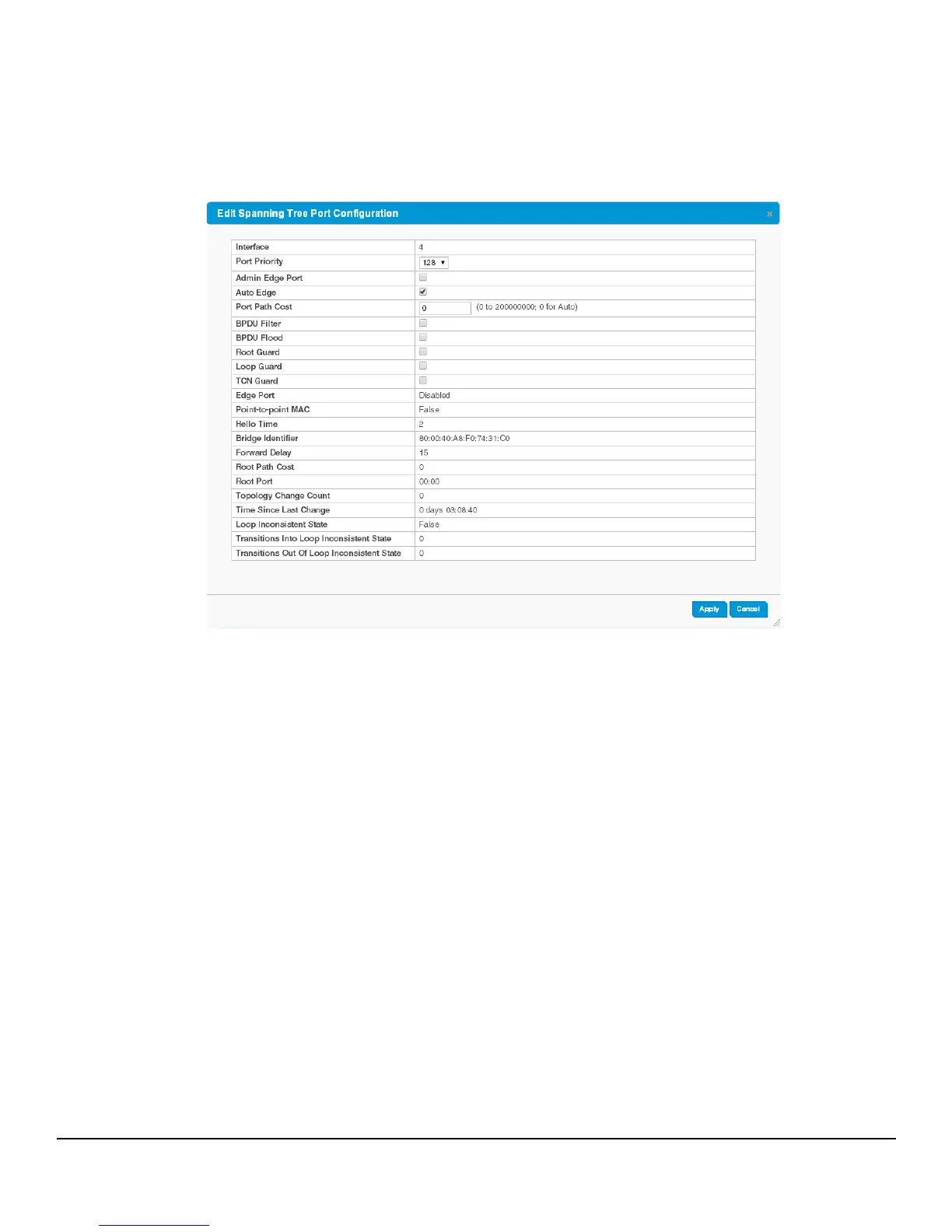

Figure 4-9. Edit Spanning Tree Port Configuration Page
The Edit Spanning Tree Port Configuration page enables you to configure settings and view status and statistics
for the selected interfaces.

HP J9980A Specifications

General

Category	Switch
Jumbo Frame Support	Yes
PoE	No
Layer	Layer 2
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	J9980A
Uplink Ports	4
MAC Address Table Size	16, 000 entries
Management	Web, SNMP, CLI
Form Factor	Rack-mountable
Power Supply	Internal
Humidity	5% to 95% (noncondensing)
