Link Layer Discovery Protocol (LLDP and LLDP-MED)

LLDP Global Configuration

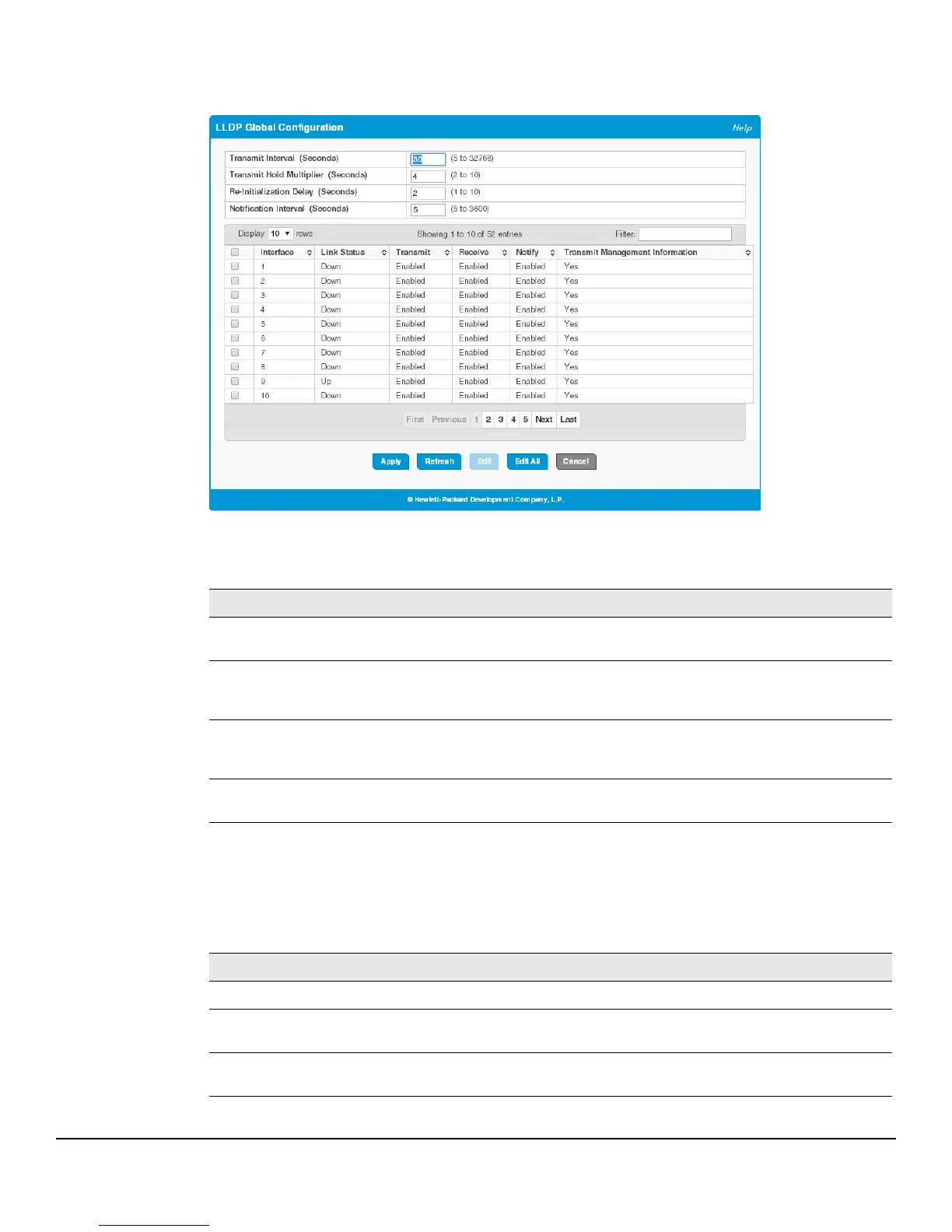

Figure 7-1. LLDP Global Configuration Page

You can configure the following global settings:

Table 7-1. LLDP Global Configuration Fields

If you change these settings, click Apply to save any changes for the current boot session. The changes take

effect immediately.

The following information displays for each interface:

Table 7-2. LLDP Global Configuration—Port Fields

Field Description

Transmit Interval Specify the time between transmission of LLDPDUs. The range is from 5 to 32768 seconds

and the default is 30 seconds.

Transmit Hold

Multiplier

Specify the multiplier value on the transmit interval, which is used to compute the time-

to-live (TTL) value associated with LLDPDUs. The range is from 2 to 10 and the default

is 4.

Re-Initialization Delay Specify the number of seconds to wait before attempting to re-initialize LLDP on a port

after the LLDP operating mode on the port changes. The range is from 1 to 10 seconds and

the default is 2 seconds.

Notification Interval Specify the minimum number of seconds to wait between transmissions of remote data

change notifications. The range is from 5 to 3600 seconds and the default is 5 seconds.

Field Description

Interface The port or trunk ID.

Link Status The link status of the interface, which is either Up or Down. An interface that is down does

not forward traffic.

Transmit The LLDP advertise (transmit) mode on the interface. If the transmit mode is enabled, the

interface sends LLDPDUs that advertise the mandatory TLVs that are enabled.
