2
3
1
2
3
4
4
1

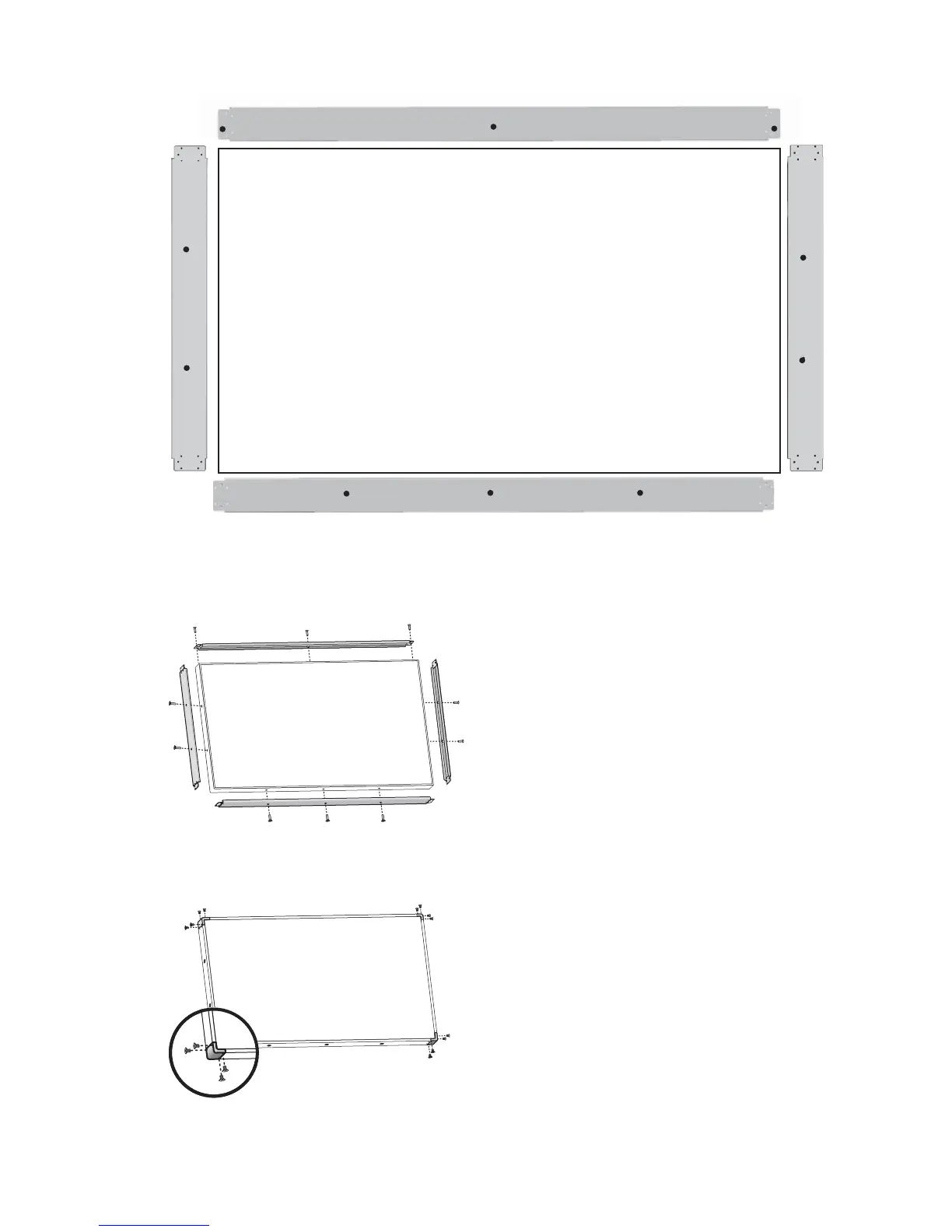

To frame a single display, attach the top rail to the top of the display with three of the large (M4 x 10
mm) screws provided. The rail overlaps the bezel of the display. Attach the bottom, left, and right rails
in the same manner, leaving the two small holes at each end open.
Figure 3-10 Attaching rails
Attach the four corner pieces with four small (M3 x 5 mm) screws each. These overlap the rails and
secure their ends.
Figure 3-11 Attaching corners
ENWW Installing the HP LD4730 Frame System (Sold Separately) 13
