19" LCD Color Monitor HP LE1901w
12

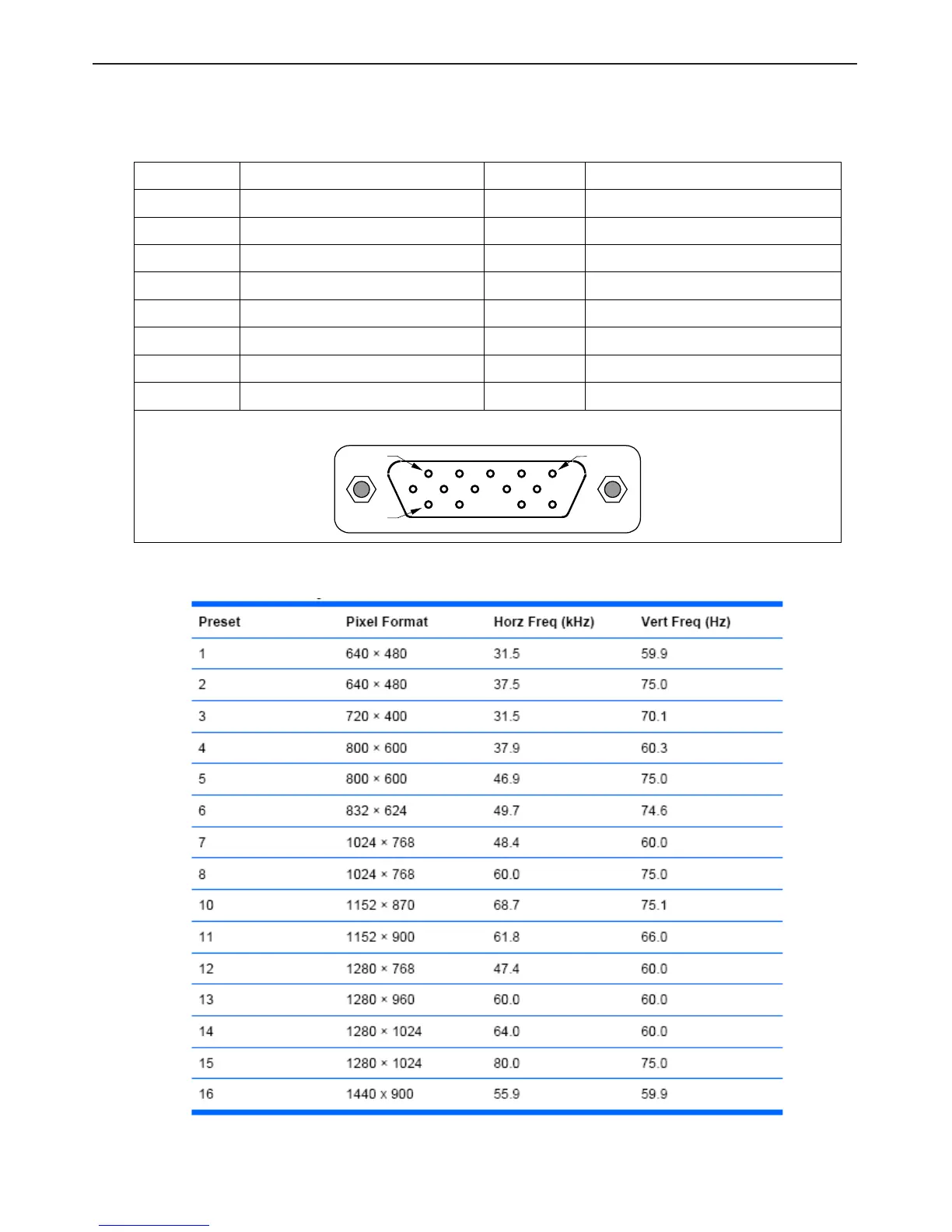

4. Input/Output Specification
4.1 Input Signal Connector
D-SUB connector
Pin Signal Pin Signal
1 Red Video 9 3.3/+5 V (from PC)
2 Green Video 10 Sync Ground
3 Blue Video 11 None
4 None 12 DDC Data
5 Ground (DDC Return) 13 Horizontal Sync
6 Red GND 14 Vertical Sync
7 Green GND 15 DDC Clock
8 Blue GND
VGA connector layout
PIN 1
PIN 5
PIN 11
4.2 Factory Preset Display Modes
