HP LE1901w Service Manual

19" LCD Color Monitor HP LE1901w
7
3. Operation Instructions
3.1 General Instructions
Use the On-Screen Display (OSD) to adjust the screen image based on your viewing preferences. To access the OSD,
do the following:
1. If the monitor is not already on, press the Power button to turn on the monitor.
2. To access the OSD Menu, press the Menu button on the monitor’s front panel.
3. To navigate through the OSD Menu, press the + (Plus) button on the monitor’s front panel to scroll up, or the –
(Minus)/Auto button to scroll in reverse.
4. To select an item from the OSD Menu, use the + or – buttons to scroll to and highlight your selection,then press the
Menu button to select that function.
5. Adjust the item using the + or – buttons on the front panel to adjust the scale.
6. After adjusting the function, select Save and Return, or Cancel if you don’t want to save the setting,then select Exit
from the Main Menu.

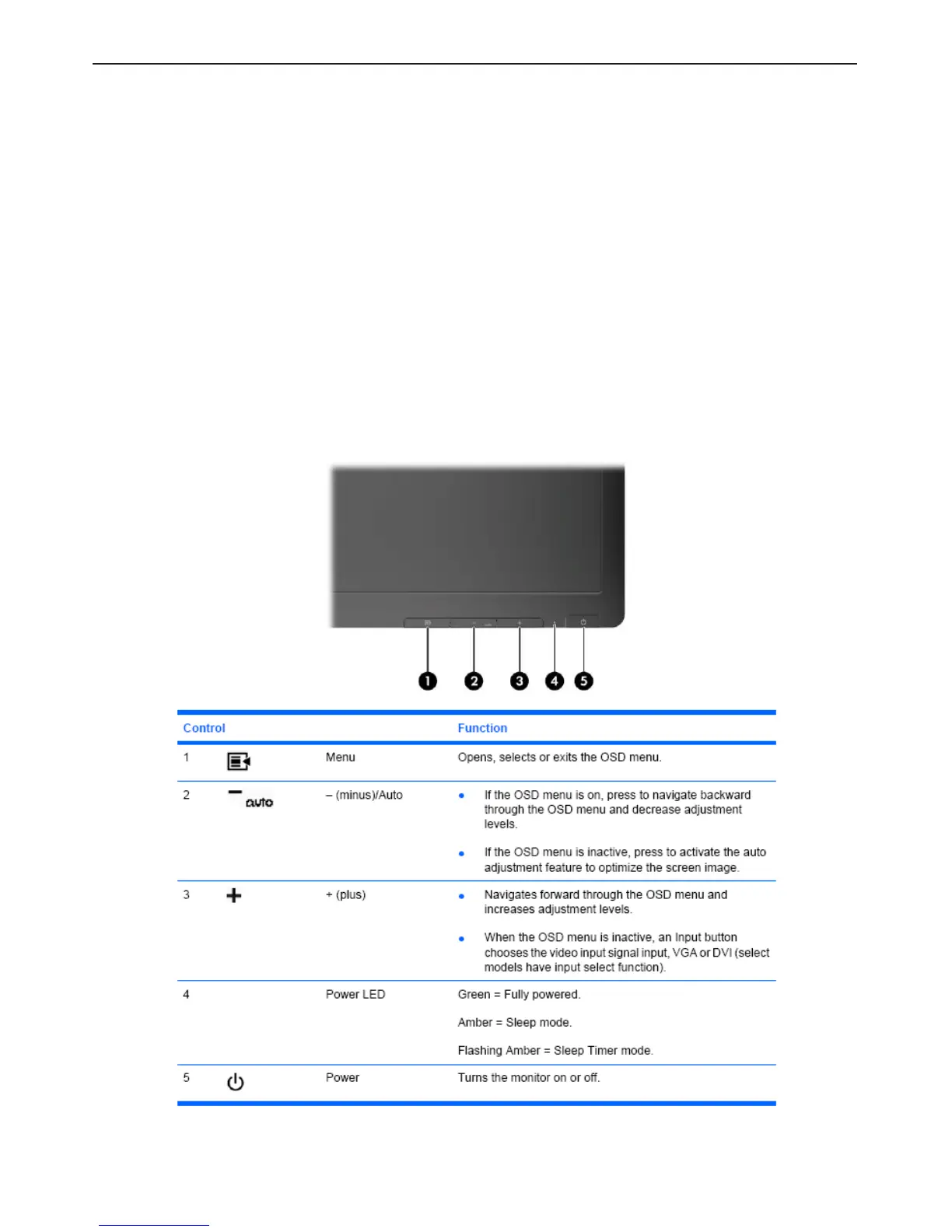

3.2 Control Button

HP LE1901w Specifications

General

3D	No
Pixel pitch	0.2835 x 0.2835 mm
Display diagonal	19 \
Display resolution	1440 x 900 pixels
Vertical scan range	56 - 76 Hz
Horizontal scan range	24 - 83 kHz
Contrast ratio (dynamic)	-
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	160 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	832 x 624, 1152 x 870, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
Operating temperature (T-T)	5 - 35 °C
Certification	CE, FCC, CUL, CCIB, CCEE, IT ECO
Product color	Black
Country of origin	China
Plug and Play	Yes
LED indicators	Power
Tilt angle range	-5 - 25 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
DVI-D ports quantity	0
Power consumption (standby)	2 W
Power consumption (typical)	29 W
Sustainability certificates	ENERGY STAR
Cables included	VGA

Weight and Dimensions

Depth (without stand)	59 mm
Width (without stand)	446 mm
Height (without stand)	301 mm
Weight (without stand)	4300 g
