HP LE1901w

19" LCD Color Monitor HP LE1901w
26

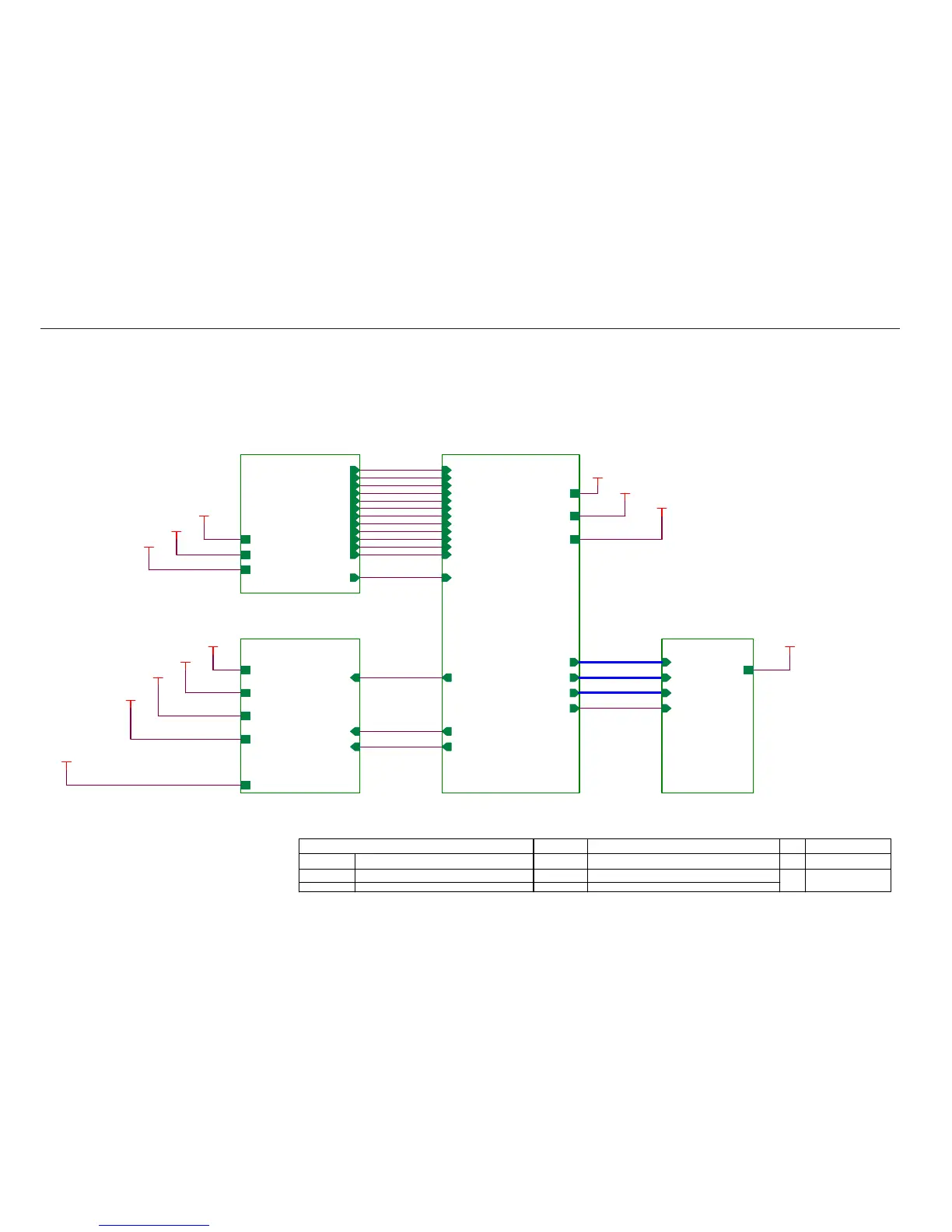

7. Schematic
7.1 Main Board
DSUB_5V
2
HP LE1901w
A
37Thursday , April 16, 2009
715G3083-2
<
称爹 >
01.COVER & REVISE HISTORY & TOP
G3083-2-X-X-3-090416
OEM MOD EL Size
Rev
Date
Sheet
of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹
ESD_VCC
XGA/SXGA
VCC1.8
05.Power
on_BACKLIGHT
BKLT_VBRI
VCC1.8
CMVCC
VCC3.3
DSUB_5V
VCTRL
ESD_VCC
03.Scalar
DSUB_R+
DSUB_G+
DSUB_SOG
DSUB_B+
DSUB_R-
DSUB_G-
DSUB_B-
DSUB_H
DSUB_V
BKLT_VBRI
VCC1.8
VCC3.3
PA[0..1]
PB[0..9]
DDC1_SDA
DDC1_SCL
DET_CABLE
on_BACKLIGHT
PPWR_ON#
CMVCC
PA[4..9]
VCTRL
DDC_WP
CMVCC
PA[4..9]
CMVCC
VCC3.3
02.Input
DSUB_R+
DSUB_G+
DSUB_B+
DSUB_V
DSUB_R-
DSUB_G-
DSUB_B-
DET_CABLE
DSUB_H
DSUB_SOG
DDC1_SDA
DDC1_SCL
DSUB_5V
ESD_VCC
VCC3.3
DDC_WP
DSUB_5V
PB[0..9]
VCC3.3
VCC3.3
CMVCC
04.Output
CMVCC
PB[0..9]
PA[0..1]
PPWR_ON#
PA[4..9]
ESD_VCC
PA[0..1]
LVDS OUTPUT
VCC1.8
TSUM1PFR SCHEMATIC
