5.

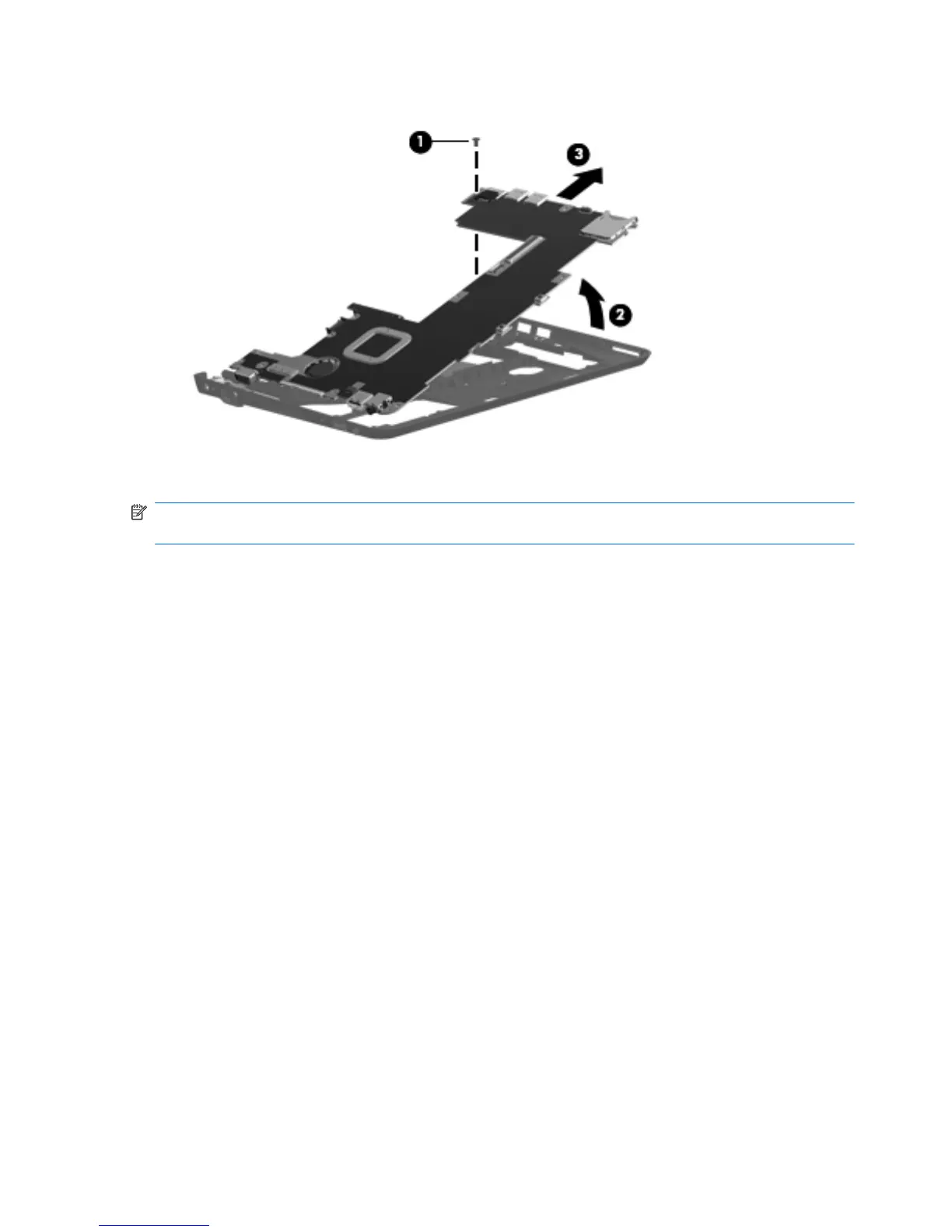

Remove the system board (3) by sliding it up and away from the base enclosure.
Reverse the procedure to install the system board.
NOTE: When reinstalling the system board, the base enclosure actuator needs to be aligned properly
with the power switch so that the parts are not damaged in the installation process.
70 Chapter 4 Removal and replacement procedures
