183
Default-MDT establishment in a PIM-SM network

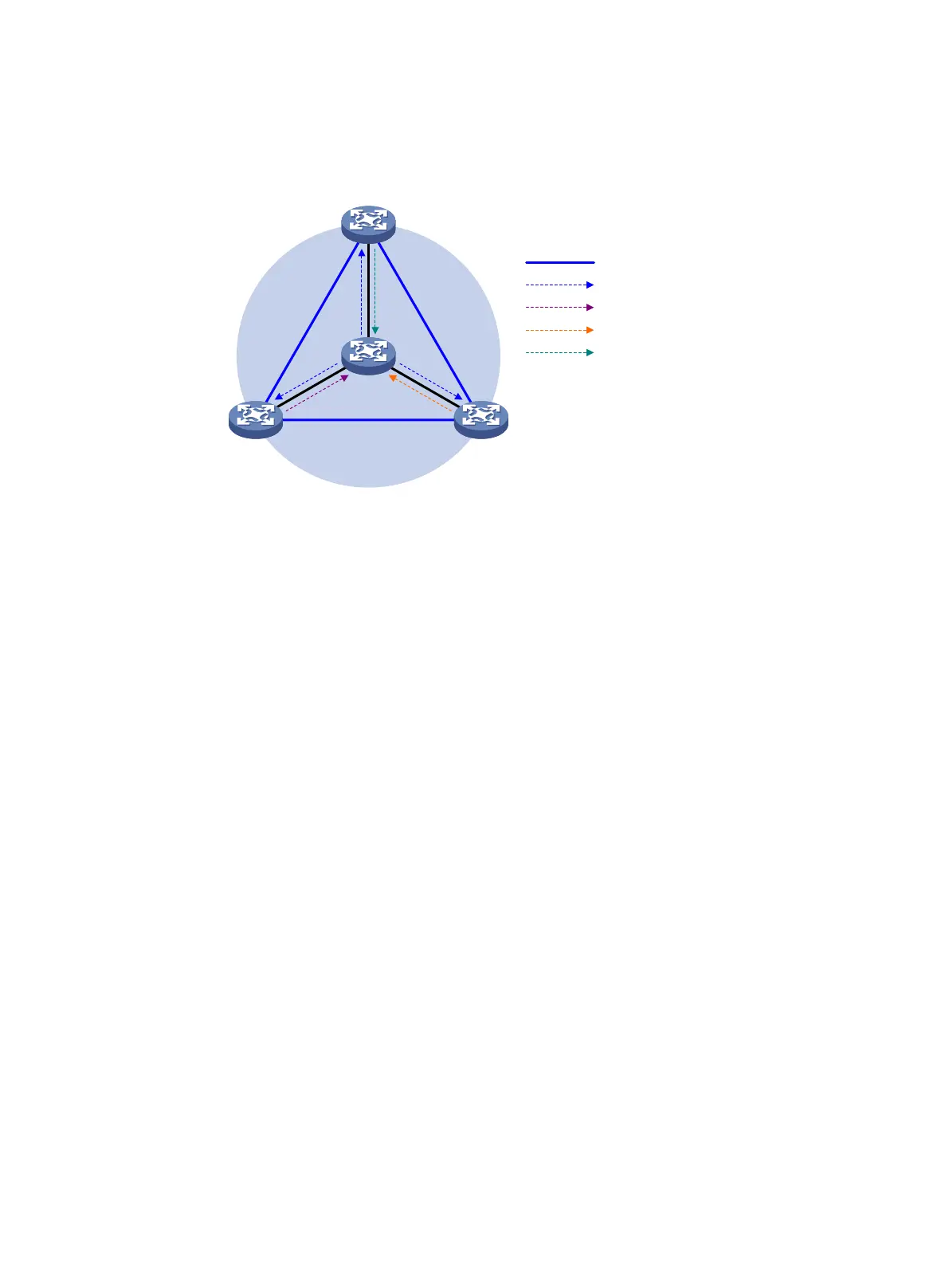

Figure 62 Default-MDT establishment in a PIM-SM network
As shown in Figure 62, PIM-SM is enabled on the network, and all the PE devices support VPN
instance A. The process of establishing a default-MDT is as follows:
1. PE 1 initiates a join to the public network RP by specifying the multicast group address as the
default-group address in the join message. A (*, 239.1.1.1) state entry is created on each
device along the path on the public network.
2. At the same time, PE 2 and PE 3 separately initiate a similar join process.
Finally, an RPT is established in the MD, with the public network RP as the root and PE 1, PE 2,
and PE 3 as leaves.
3. To establish PIM neighboring relationships with PE 2 and PE 3 through the MTI for the VPN
instance A, PE 1 does the following:
a. Encapsulates the PIM protocol packet of the private network into a public network multicast
data packet. PE 1 does this by specifying the source address as the IP address of the MD
source interface and the multicast group address as the default-group address.
b. Sends the multicast data packet to the public network.
The public network interface of PE 1 registers the multicast source with the public network RP,
and the public network RP initiates a join to PE 1. A (11.1.1.1, 239.1.1.1) state entry is created
on each device along the path on the public network.
4. At the same time, PE 2 and PE 3 separately initiate a similar register process.
Finally, three SPTs between the PE devices and the RP are established in the MD.
In the PIM-SM network, the RPT, or the (*, 239.1.1.1) tree, and the three independent SPTs
constitute the default-MDT.
BGP: 11.1.1.1/24
BGP: 11.1.3.1/24
Public instance BGP peers
RPT (*, 239.1.1.1)
MD
P
RP
PE 3
PE 2PE 1
BGP: 11.1.2.1/24
SPT (11.1.1.1, 239.1.1.1)
SPT (11.1.2.1, 239.1.1.1)
SPT (11.1.3.1, 239.1.1.1)
Default-group: 239.1.1.1
