HP MSR954 Series - Jh297 A; Jh298 A

30
JH297A

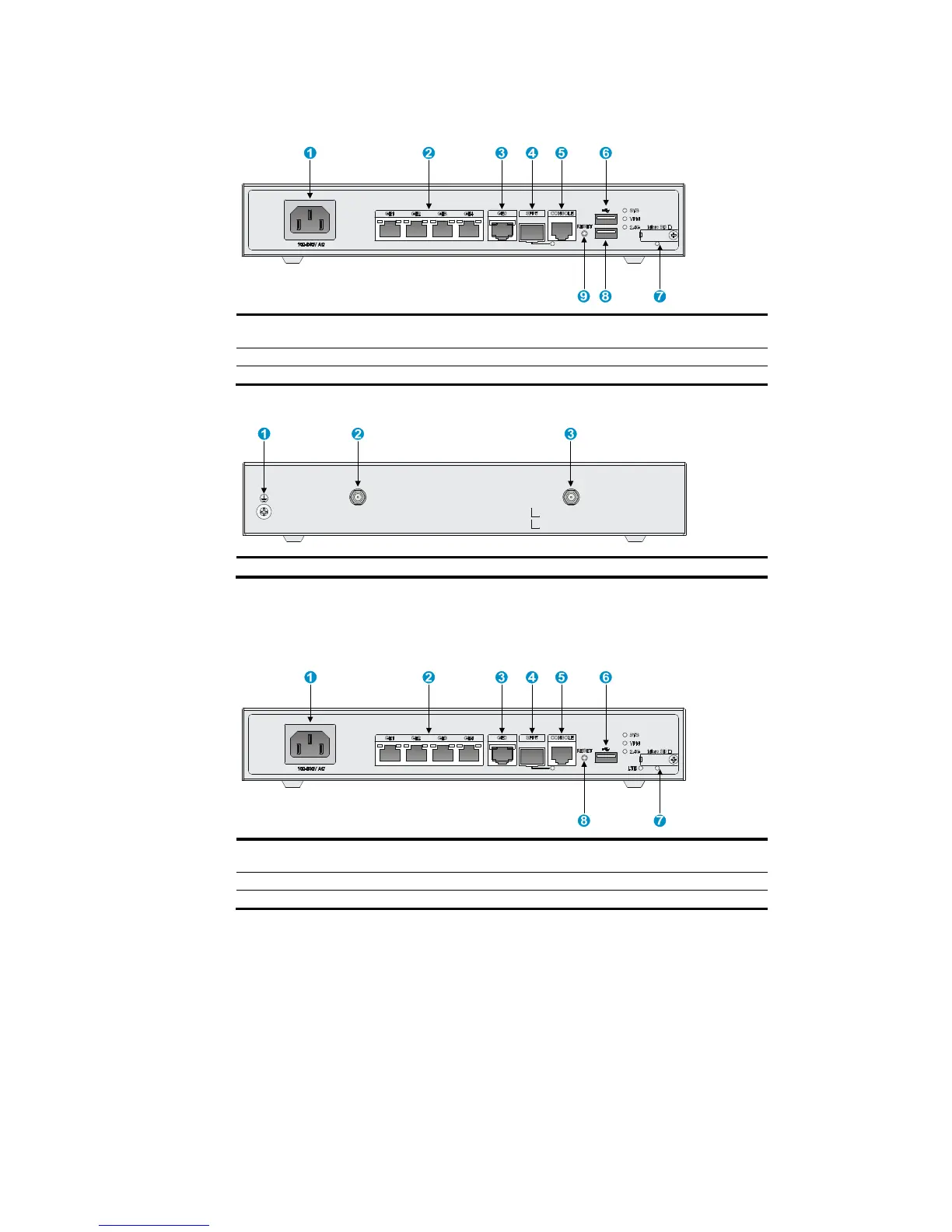

Figure 27 Front view
(1) AC power receptacle (2) Gigabit Ethernet LAN ports
(GE1 to GE4)
(3) Gigabit Ethernet WAN port (GE0)
(4) Gigabit fiber port (SFP5) (5) Console port (6) USB port
(7) Micro SD card slot (8) USB port
(9) Reset button (RESET)
Figure 28 Rear view
(1) Groundin
g
screw (2) 2.4G WLAN antenna port
(3)
2.4 G WLAN antenna port
JH298A
Figure 29 Front view
(1) AC power receptacle (2) Gigabit Ethernet LAN ports
(GE1 to GE4)
(3) Gigabit Ethernet WAN ports (GE0)
(4) Gi
g
abit fiber port (SFP5) (5) Console port
(6) USB port
(7) Micro SD card slot (8) Reset button (RESET)
