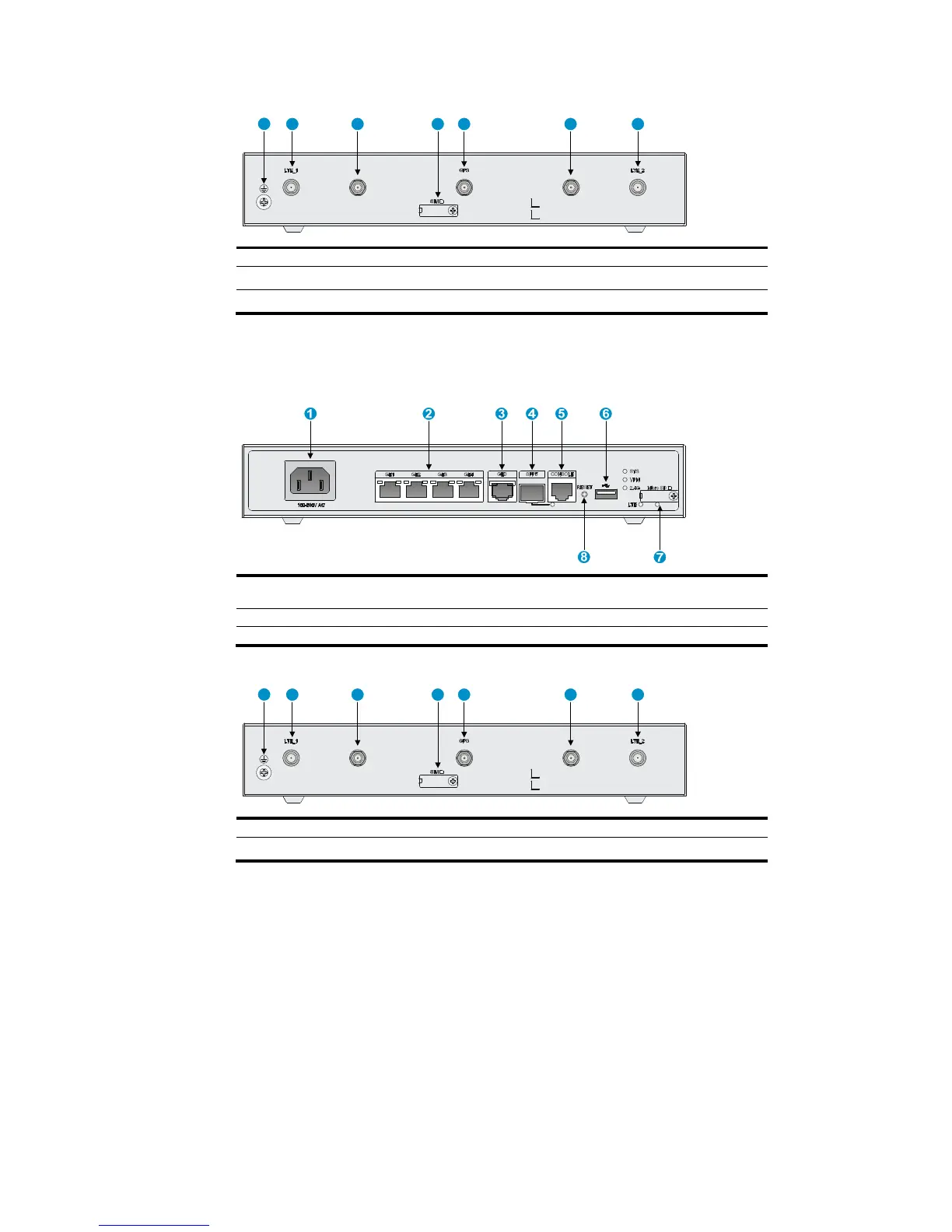

Figure 30 Rear view
(1) Groundin
g
screw (2) LTE antenna port 1
(3)
2.4G WLAN antenna port
(4) 4G SIM card slot (5) GPS antenna port (6) 2.4G WLAN antenna port
(7) LTE antenna port 2
JH299A
Figure 31 Front view
(1) AC power receptacle (2) Gigabit Ethernet LAN ports
(GE1 to GE4)
(3) Gigabit Ethernet WAN port (GE0)
(4) Gi
g
abit fiber port (SFP5) (5) Console port
(6) USB port
(7) Micro SD card slot (8) Reset button (RESET)
Figure 32 Rear view
(1) Groundin
g
screw (2) LTE antenna port 1
(3) 4G SIM card slot
(4) GPS antenna port (5) LTE antenna port 2
1 2 3 4 5 6 7
1 2 3 4 5 6 7
