Before removing the optical drive dummy, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the base enclosure (see Base enclosure on page 20), and then remove the following
components:
▲
Battery (see Battery on page 22).
Remove the optical drive dummy:
▲

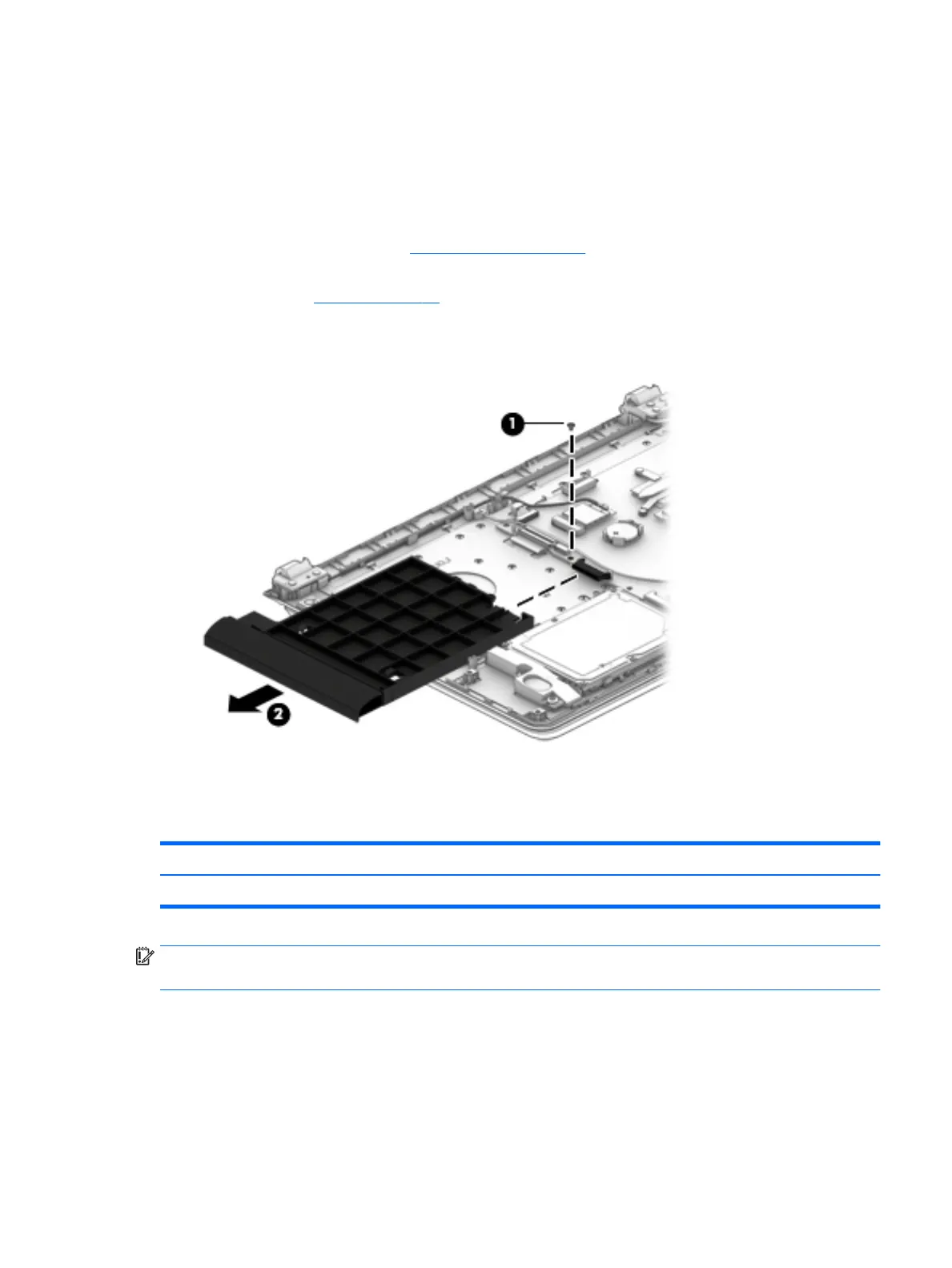

Remove 1 screw (1), and then remove the optical drive dummy (2).
Reverse this procedure to install the optical drive dummy.
Hard drive
Description Spare part number
Hard drive, SATA 500 GB 5400 RPM 7MM 683839-855
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement.
Before removing the hard drive, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
Component replacement procedures 23
