HP Notebook 14

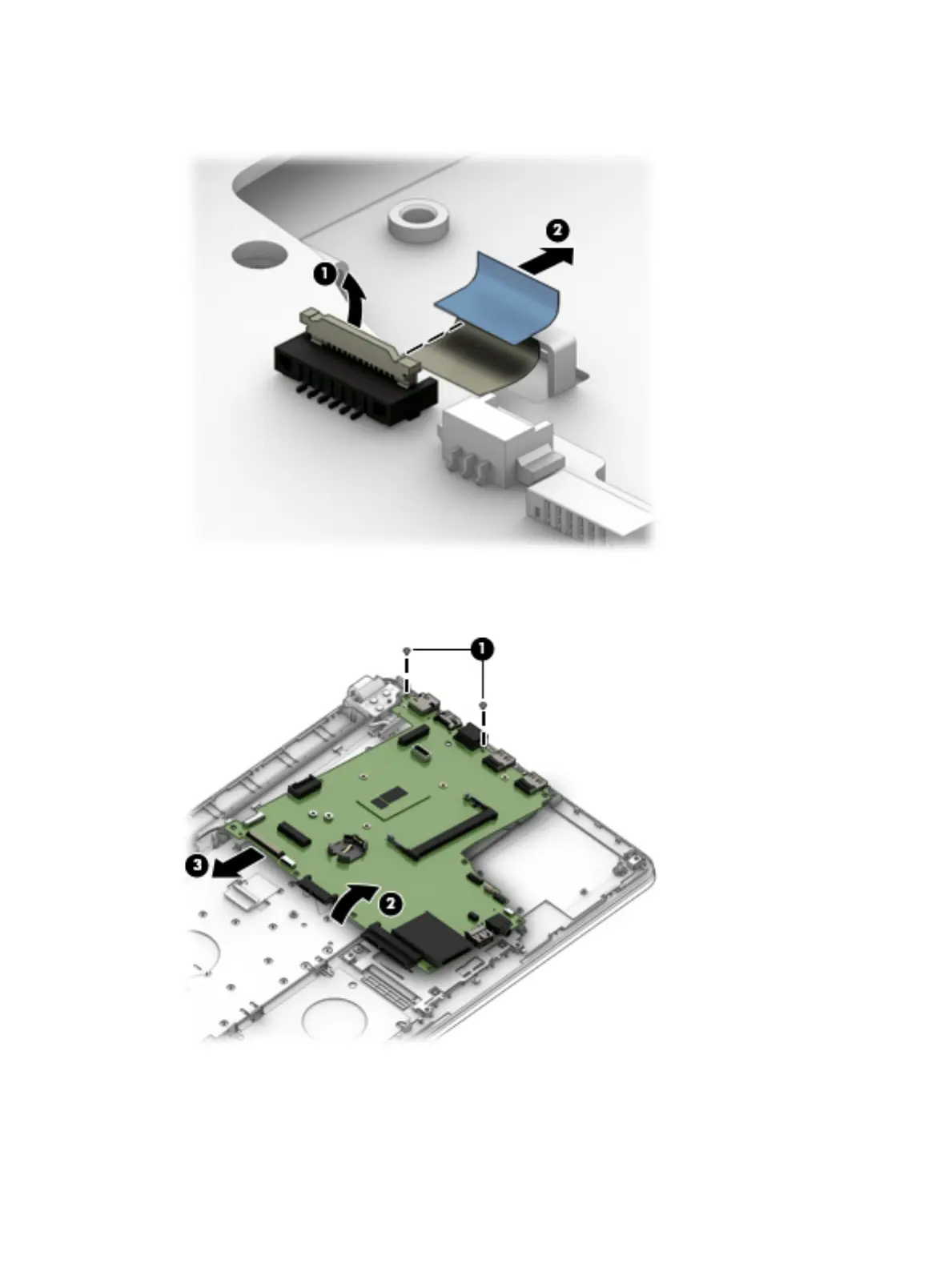

3. Open the TouchPad cable zero-insertion force (ZIF) connector (1), and then disconnect if from the
system board (2).
4. Remove 2 Phillips screws (1).
5. Lift the system board (2), and then remove it (3).
Reverse this procedure to install the system board.
38 Chapter 5 Removal and replacement procedures for authorized service provider parts
