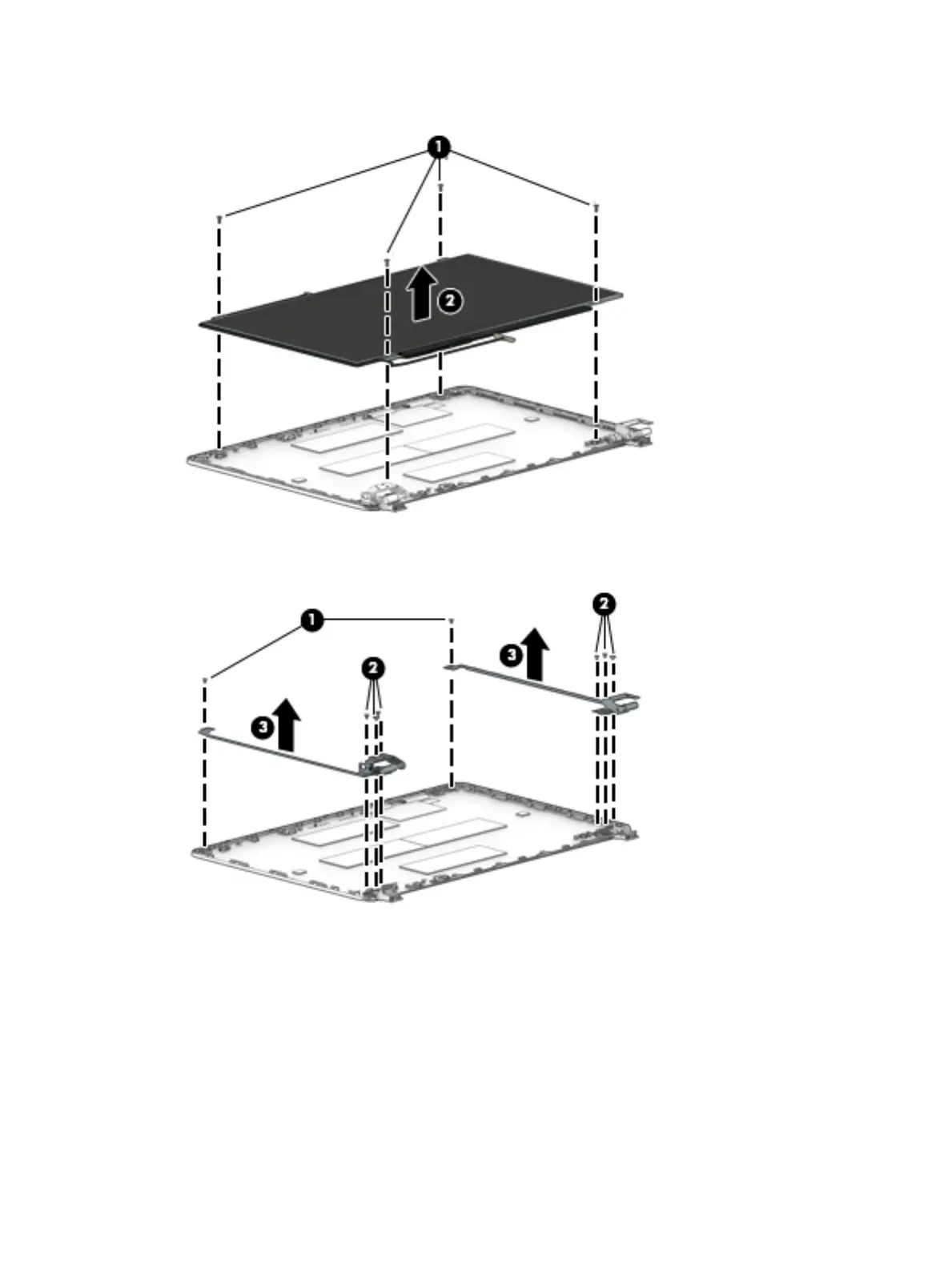

6. Remove 4 screws from the display panel (1), and then remove it (2).
7. Remove 1 screw from the top of each hinge bracket (1) and 3 screws from each hinge (2) and then
remove the hinge brackets (3).
Reverse this procedure to install the display assembly.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
