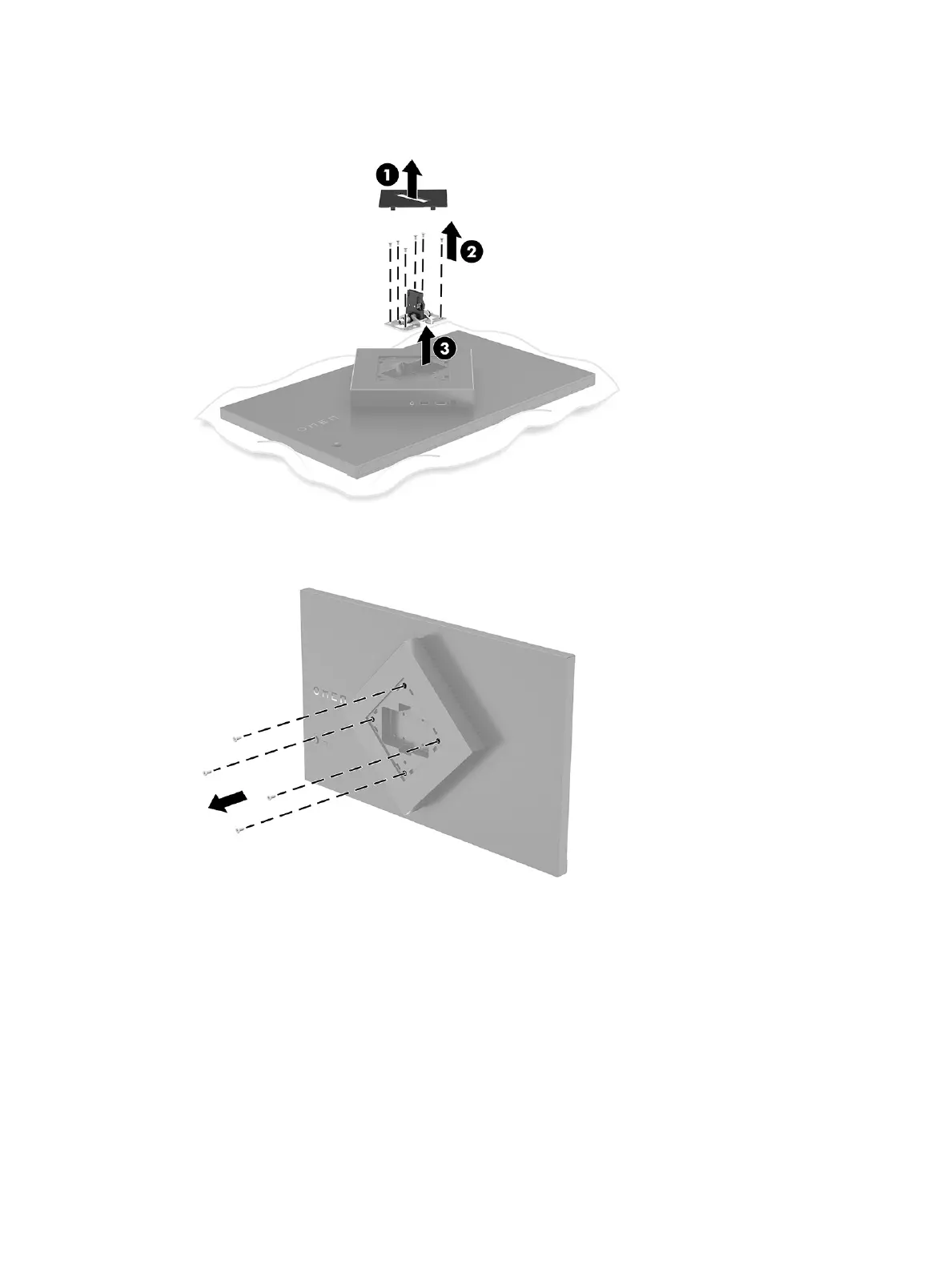

3. Use a screwdriver to remove the six screws that hold the hinge in place (2), and then remove the hinge
(3).
4. Remove the four screws from the VESA holes located on the back of the monitor and use them to attach
the mounting device as indicated in the following step 6.
5. On the swing arm, rotate the VESA adapter to 45° to line up with the screw holes on the back of the
monitor (1) before attaching it to the monitor.
8 Chapter 1 Getting started
