21
Phone Jack connector CN601
Repair the audio connector:

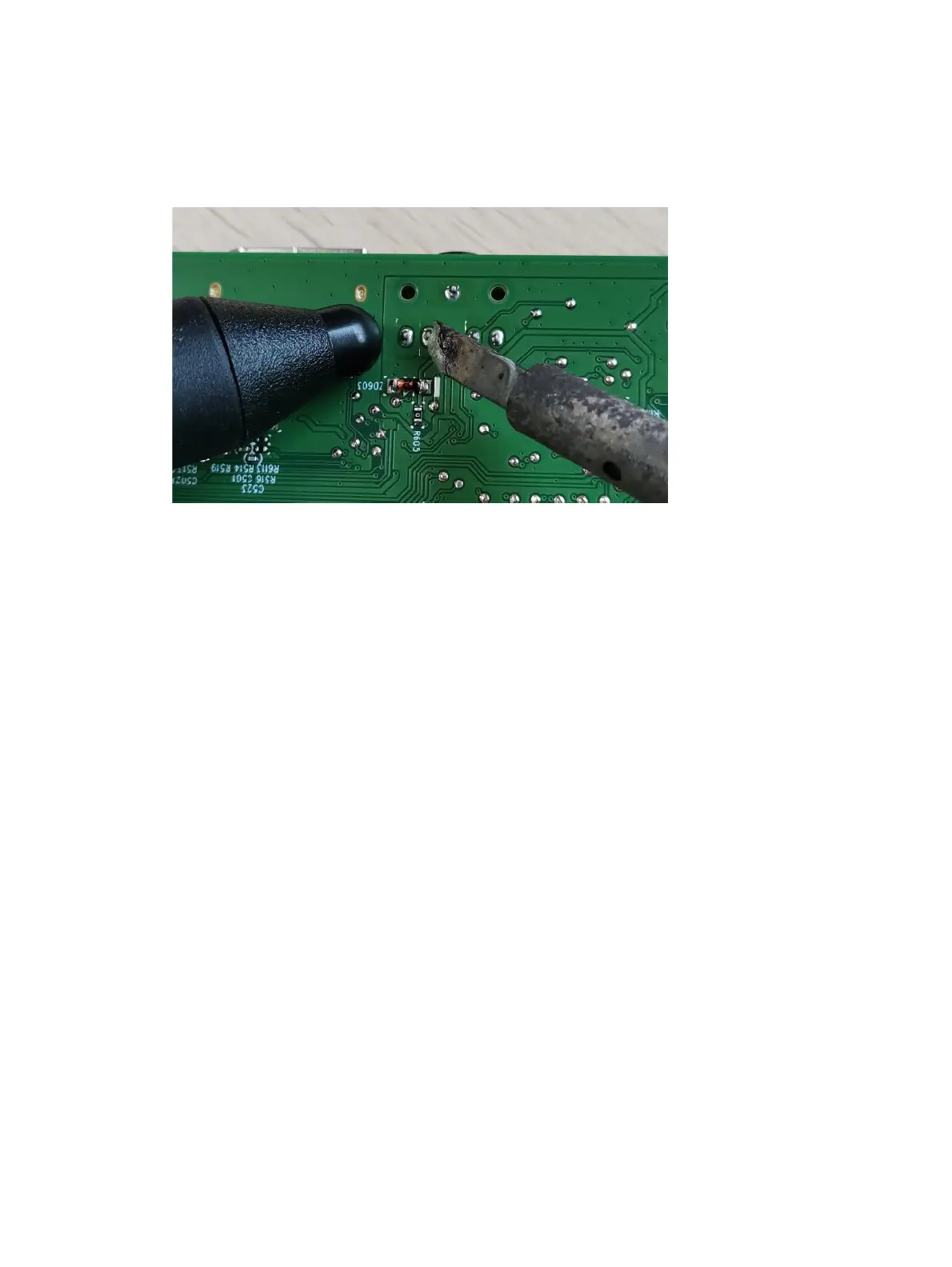

1） Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Lift the audio connector from the circuit board.
3) Place the new component on the circuit board. Be sure that it matches the circuit board footprint.
4) Solder the new component.
