Attaching the VESA mounting bracket
A VESA mounting adapter is included with the monitor for use when you attach the monitor head to a swing
arm.
IMPORTANT: The swing arm for this monitor must include a VESA mounting adapter with a rotation function
to accommodate the landscape design of the monitor.

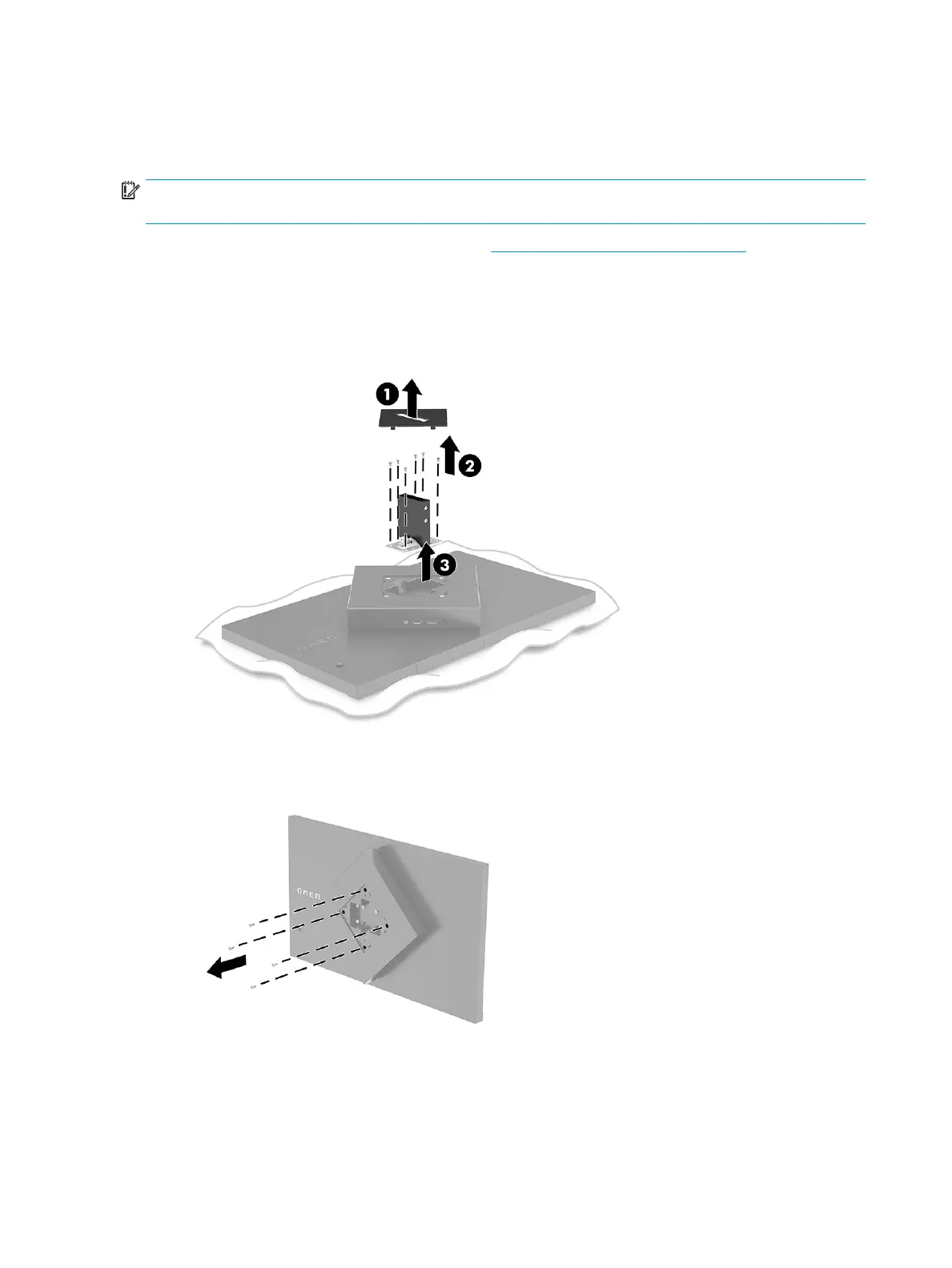

1. Remove the monitor stand if it is attached. See Removing the monitor stand on page 5.
2. Use a athead screwdriver to pry open the VESA cover on the back of the monitor, and remove the VESA
cover (1).
3. Use a screwdriver to remove the six screws that hold the hinge in place (2), and then remove the hinge
(3).
4. Remove the four VESA screws from the back of the monitor and use them to attach the mounting device
as indicated in the following step 6.
5. On the swing arm, rotate the VESA adapter to 45° to line up with the screw holes on the back of the
monitor (1) before attaching it to the monitor.
6 Chapter 1 Getting started
