If you need to remove the optical drive bracket from the rear of the optical drive:

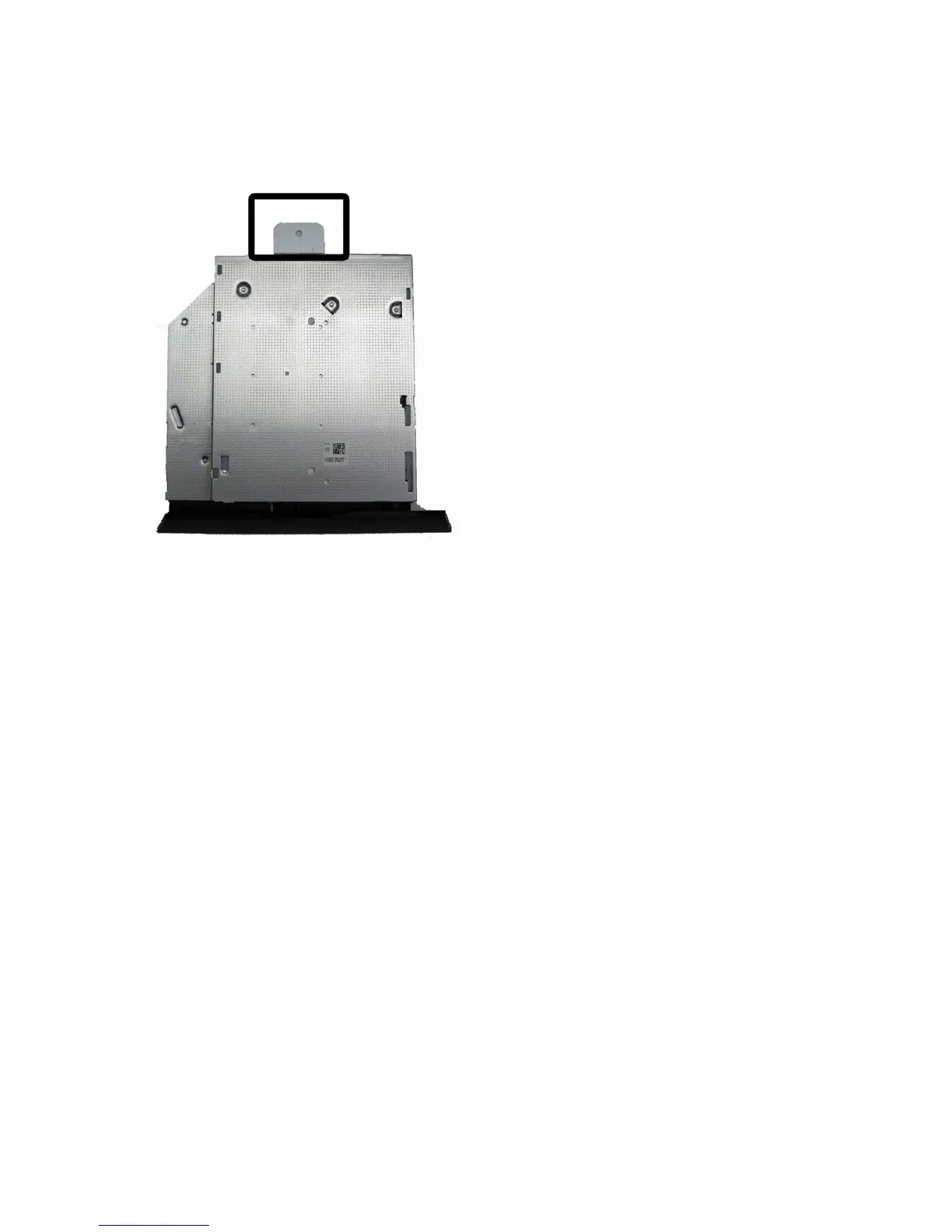

Figure 7-5 Optical drive bracket
1. Remove the two screws that secure the bracket to the drive.
2. Remove the bracket from the drive.
To install an optical drive, reverse the removal procedures.
32 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
