Speakers
Description Spare part number
Speaker, right 651597-001
Speaker, left 651598-001
The speakers are located at the bottom of the computer. Two separate speakers are each secured by
two screws. The left speaker connects to the right speaker, and the right speaker connects to the
system board.
To remove the speakers:
1. Prepare the computer for disassembly (see
Preparing to Disassemble the Computer
on page 27).
2. Remove the small rear cover (see
Small Rear Cover on page 28).
3. Remove the stand (see
Stand on page 29).
4. Remove the right rear cover (see
Right Rear Cover on page 35).
5. Remove the heat sink (see
Heat Sink (Thermal Module) on page 38).
6. Remove the rear cover (see
Rear Cover on page 46).
7. Remove the system board shield (see
System Board Shield on page 51).
8. Remove two screws that secure each speaker to the computer.

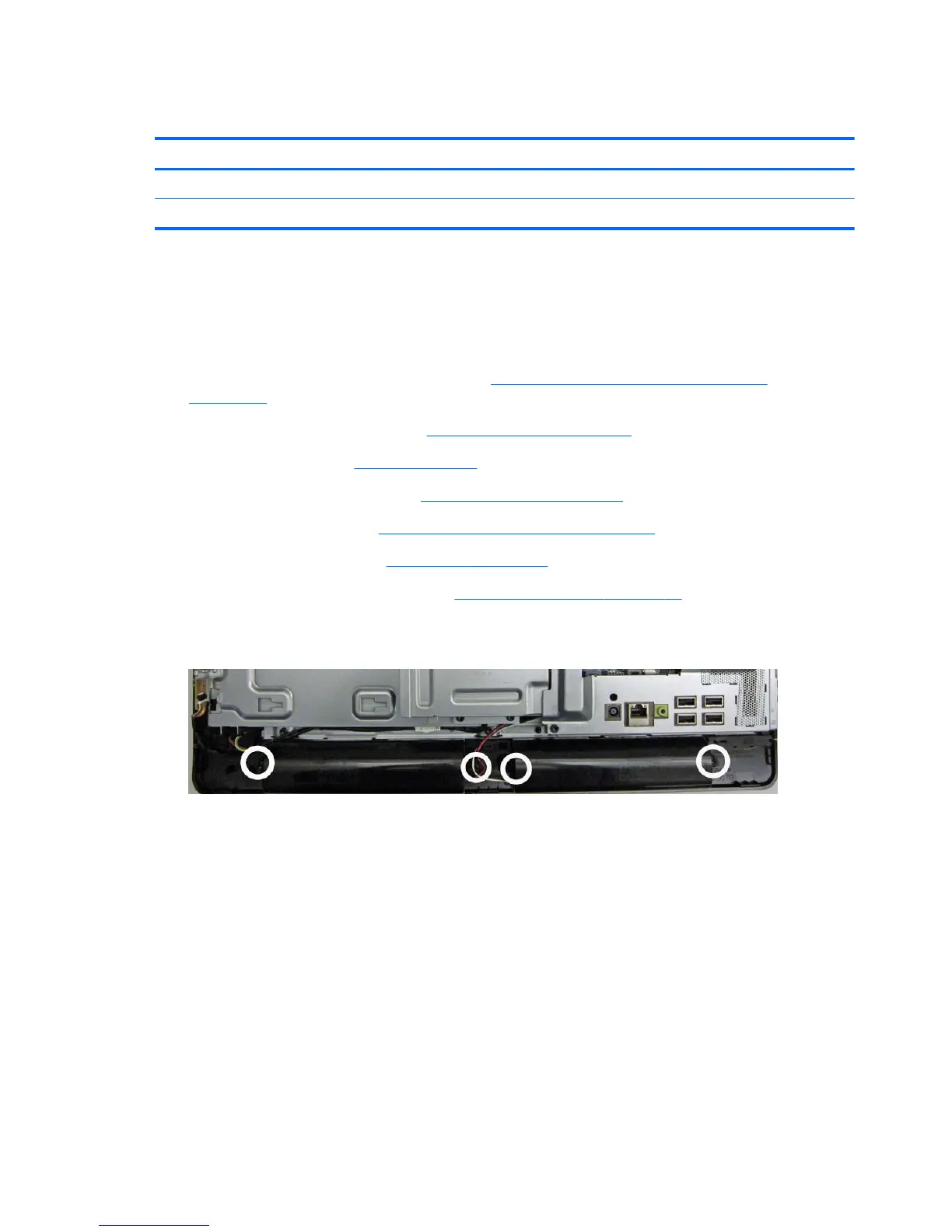

Figure 7-25 Removing the speakers
54 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
