9.
Pry the cover off at
the top covers
(2)
, and then work around the rema
inder of the computer
prying the cover off
(3)
.

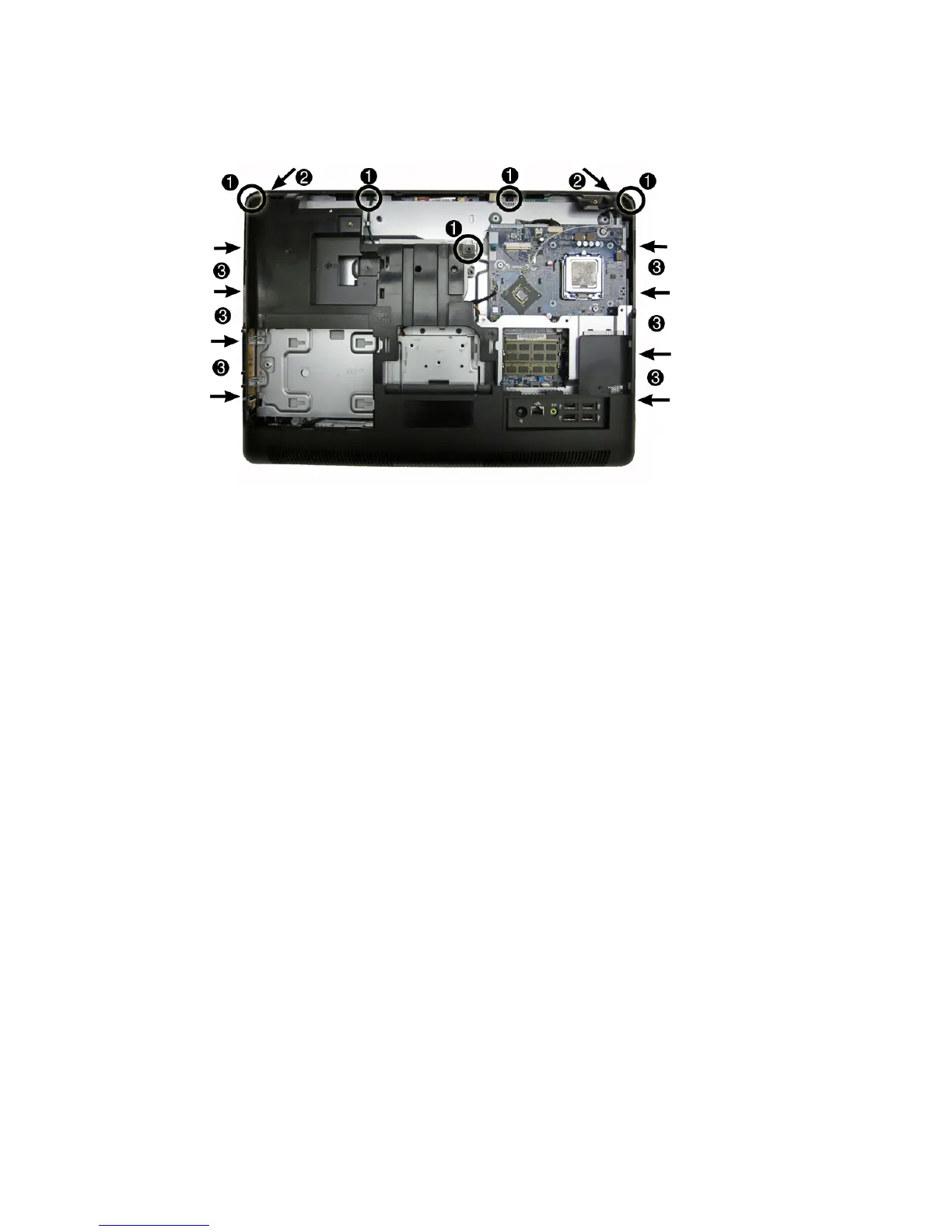

Figure 7-20
Removing the rear cover
10.
Remove the rear cove
r from the computer.
To replace the rear cove
r, re
verse the removal
procedures.
Rear Cov
er
47
54
56
Table of Contents
Default Chapter
3
About this Book
3
Table of Contents
5
1 Product Features
9
Front Components
10
Rear and Side Components
11
2 Installing and Customizing the Software
12
Installing the Operating System
12
Downloading Microsoft Windows Updates
12
Installing or Upgrading Device Drivers (Windows Systems)
13
Protecting the Software
13
3 Computer Setup (F10) Utility
14
Computer Setup (F10) Utilities
14
Using Computer Setup (F10) Utilities
14
Computer Setup-Main
15
Computer Setup-Advanced
17
Computer Setup-Power
17
Computer Setup-Boot
18
Computer Setup-Exit
19
Recovering the Configuration Settings
19
4 Serial ATA (SATA) Drive Guidelines and Features
20
SATA Hard Drives
20
SATA Hard Drive Cables
20
SATA Data Cable
20
SMART ATA Drives
21
Hard Drive Capacities
21
5 Identifying the Chassis, Routine Care, and Disassembly Preparation
22
Chassis Designation
22
All-In One
22
Electrostatic Discharge Information
23
Generating Static
23
Preventing Electrostatic Damage to Equipment
23
Personal Grounding Methods and Equipment
24
Grounding the Work Area
24
Recommended Materials and Equipment
25
Operating Guidelines
25
Routine Care
26
General Cleaning Safety Precautions
26
Cleaning the Computer Case
26
Cleaning the Keyboard
26
Cleaning the Monitor
27
Cleaning the Mouse
27
Service Considerations
27
Tools and Software Requirements
27
Screws
28
Cables and Connectors
28
Hard Drives
28
Lithium Coin Cell Battery
28
6 Illustrated Parts Catalog
30
Computer Major Components
30
Mass Storage Devices
32
Sequential Part Number Listing
32
7 Removal and Replacement Procedures All-In One (AIO) Chassis
35
Preparing to Disassemble the Computer
35
Small Rear Cover
36
Stand
37
Left Rear Cover
38
Optical Drive
39
Hard Drive
41
Right Rear Cover
43
Memory
44
Heat Sink (Thermal Module)
46
Processor
48
WLAN Module
50
Webcam Module
52
Rear Cover
54
Inverter Board
56
Power Button Board
58
System Board Shield
59
Fan
60
Speakers
62
System Board
64
Stand Bracket
66
Drive Connectors
67
Front Bezel
68
Display Panel
71
Appendix A POST Error Messages
73
POST Numeric Codes and Text Messages
74
Interpreting POST Diagnostic Front Panel Leds and Audible Codes
81
Resetting the CMOS Jumper
84
Appendix B Connector Pin Assignments
86
Ethernet BNC
86
Usb
86
Microphone
86
Headphone
87
Line-In Audio
87
Line-Out Audio
87
Appendix C Power Cord Set Requirements
88
General Requirements
88
Japanese Power Cord Requirements
88
Country-Specific Requirements
89
Appendix D Specifications
90
All-In One Models
90
Index
91
