12. Press the tabs that secure the bezel to the display assembly, and separate the bezel from the
display assembly.

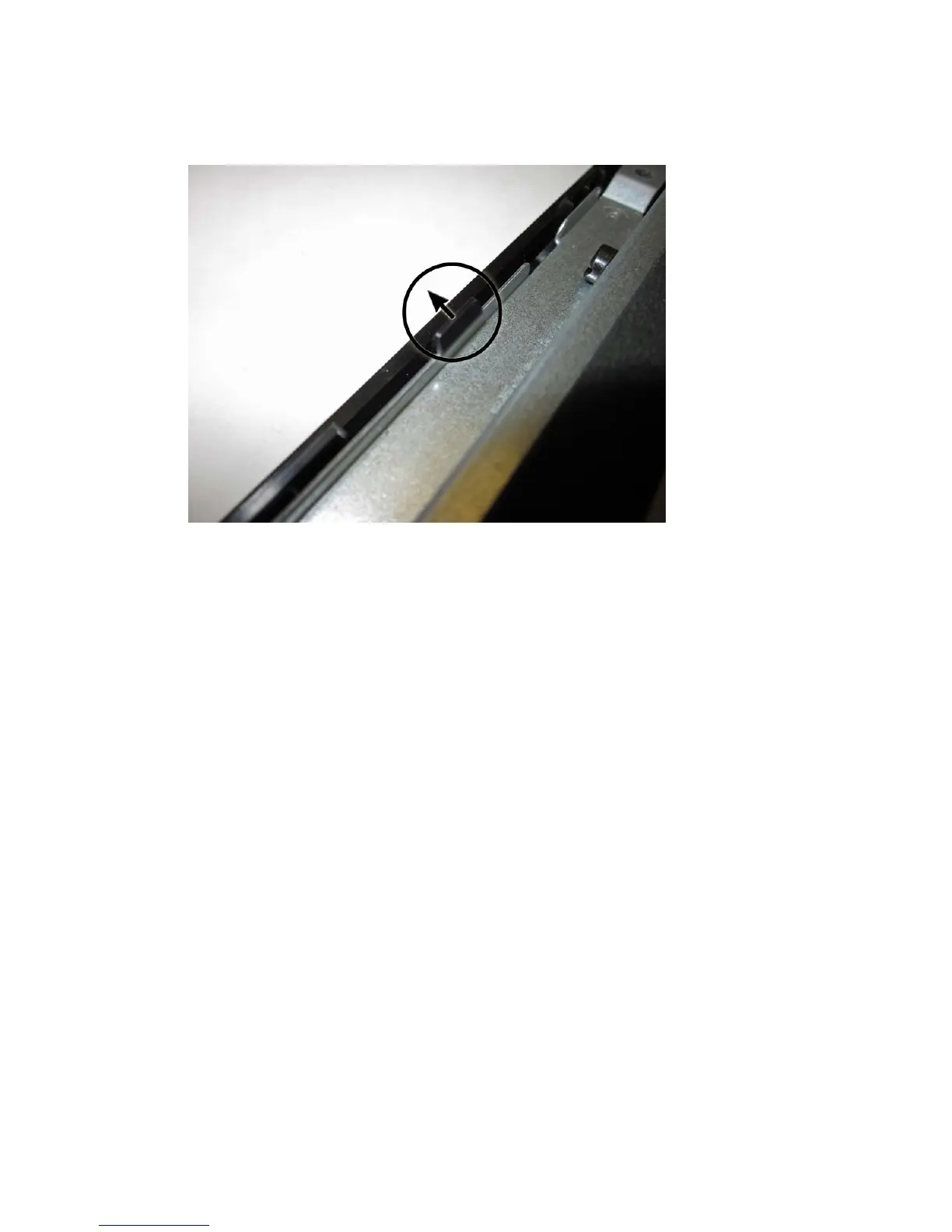

Figure 7-32 Removing the bezel from the display assembly
13. Lift the tabs to disengage the computer from the bezel
14. Remove the bezel from the computer.
To install a front bezel, reverse the removal procedures.
62 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
