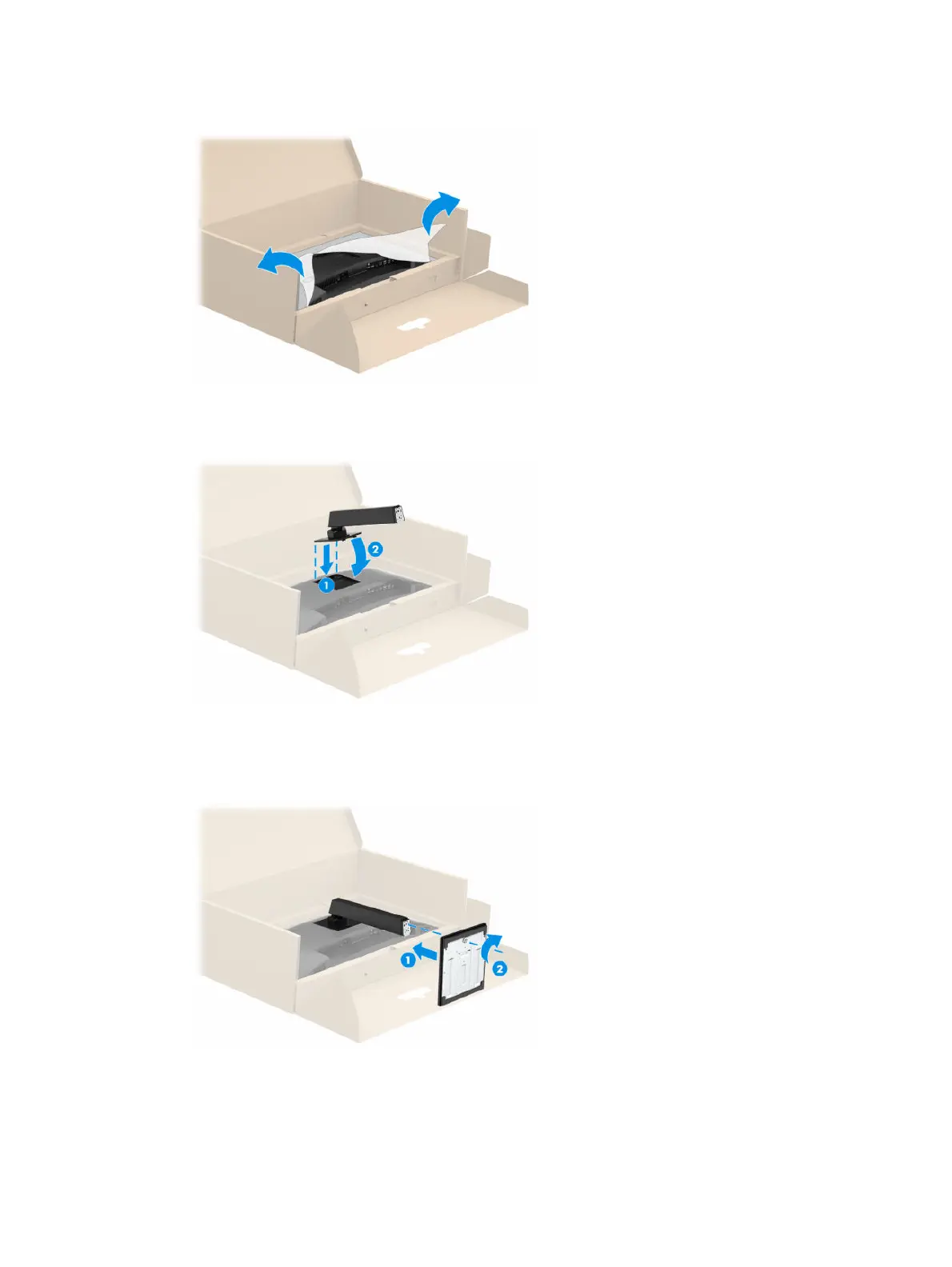

1. With the monitor placed facedown inside the box, tear open the packaging bag along the tear line.
2. With the monitor still placed facedown inside the box, lower the bottom of the stand's mounting plate
into the back of the monitor’s recess (1) until it snaps into place (2).
3. With the monitor still placed facedown inside the box, insert the base into the bottom of the monitor
stand (1). Swivel the base counterclockwise. Be sure that the monitor stand screw heads are aligned with
the holes on the bottom of the base to lock in place. Tighten the thumbscrew (2).
Mounting the monitor head
To attach your monitor to a wall using a swing arm or other mounting xture, follow the steps in this section
to safely and securely connect your monitor.
Mounting the monitor head
7
