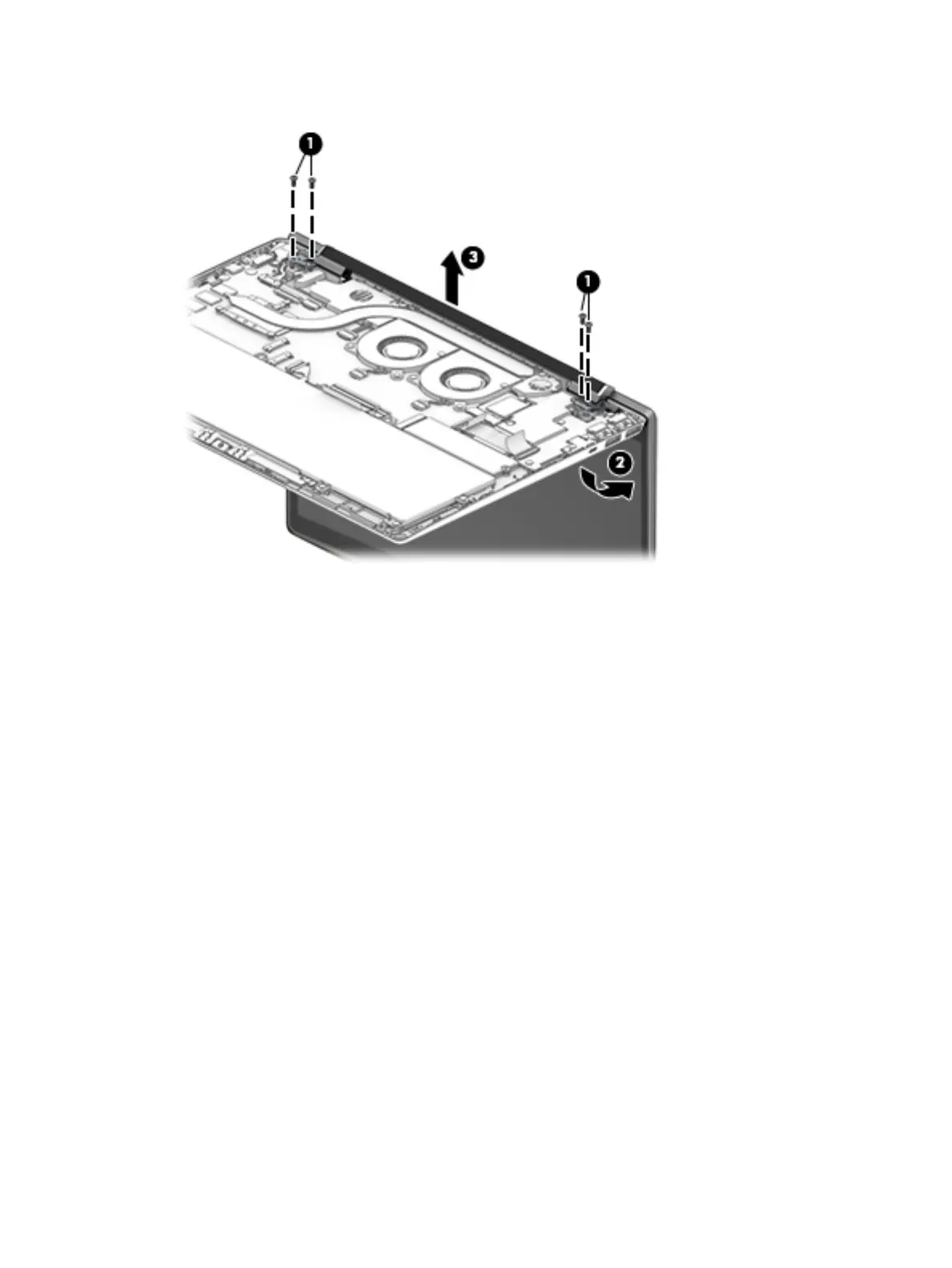

7. Separate the display from the computer (3).
8. If it is necessary to remove or replace the display bezel or any of the display assembly subcomponents:
a. Release the left and right edges of the display bezel (1) from the display assembly.
b. Release the top edge of the display bezel (2) from the display assembly.
c. Release the bottom edge of the display bezel (3) from the display assembly.
d. Remove the display bezel from the display assembly (4).
The display bezel is available using the following spare part numbers:
●
L37359-001 - 220n bezel
●
L37360-001 - 300n bezel
Display bezel adhesive is available using spare part number L38077-001.
46 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
