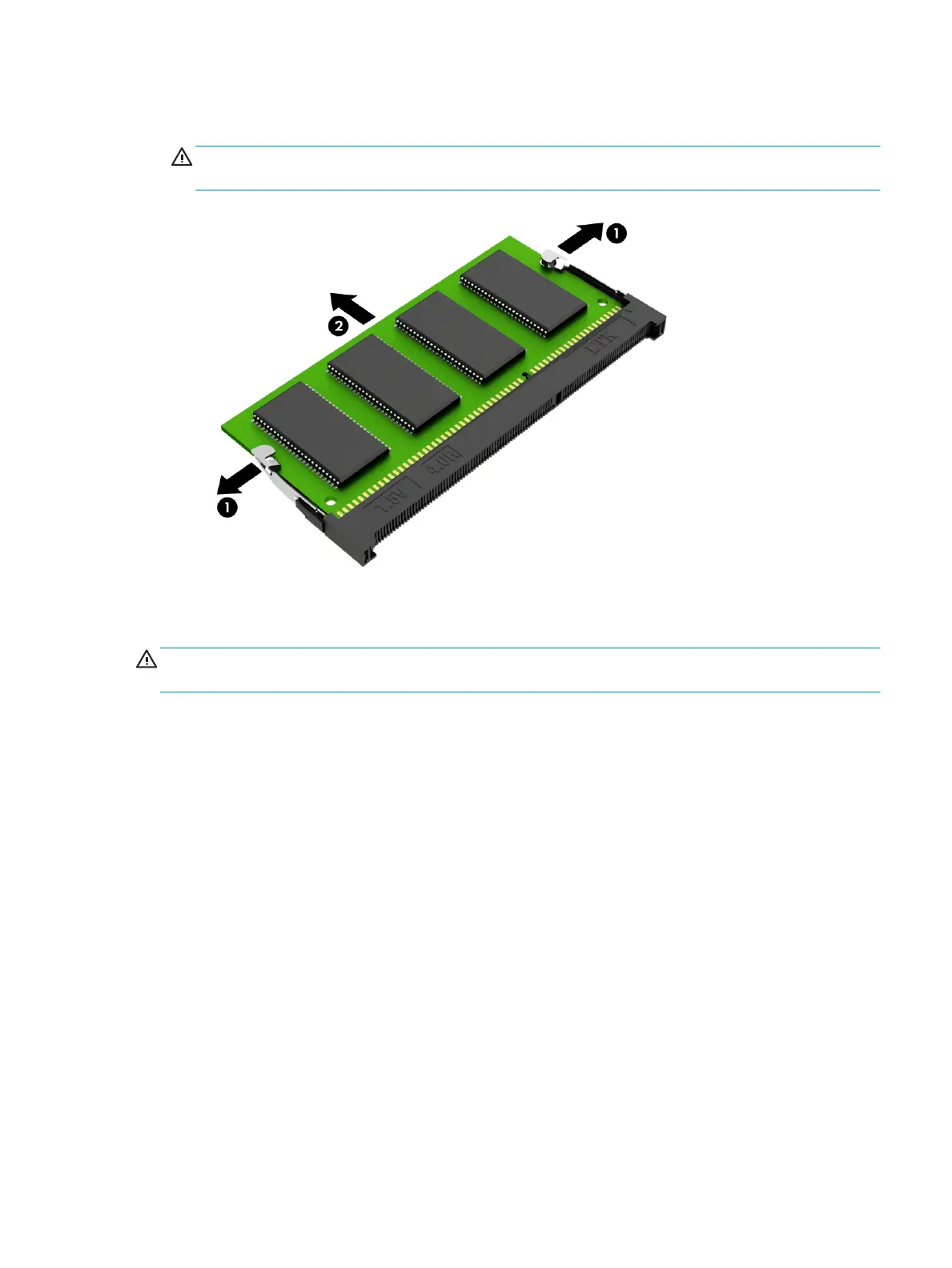

2. Spread the two retention clips outward (1) until the memory module tilts up at a 45-degree angle, and
then remove the module (2) Use the same procedure to remove all memory modules.
CAUTION: To prevent damage to the memory module, hold the memory module by the edges only. Do
not touch the components on the memory module.
To protect a memory module after removal, place it in an electrostatic-safe container.
To install a memory module:
CAUTION: To prevent damage to the memory module, hold the memory module by the edges only. Do not
touch the components on the memory module.
1. Align the notched edge of the module with the tab in the slot (1), and then press the module into the slot
at an angle until it is seated (2).
Component replacement procedures 41
