Heat sink
Description Spare part number
Heat sink for use in products with GeForce 950M/960M/965M graphics 856668-001
Heat sink for use in products with GeForce GTX1050M graphics 920563-001
Heat sink for use in products with GeForce GTX 950M graphics L03383-001
Before removing the heat sink, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the base enclosure (see Base enclosure on page 32).
5. Disconnect the cable from the battery.
Remove the heat sink:

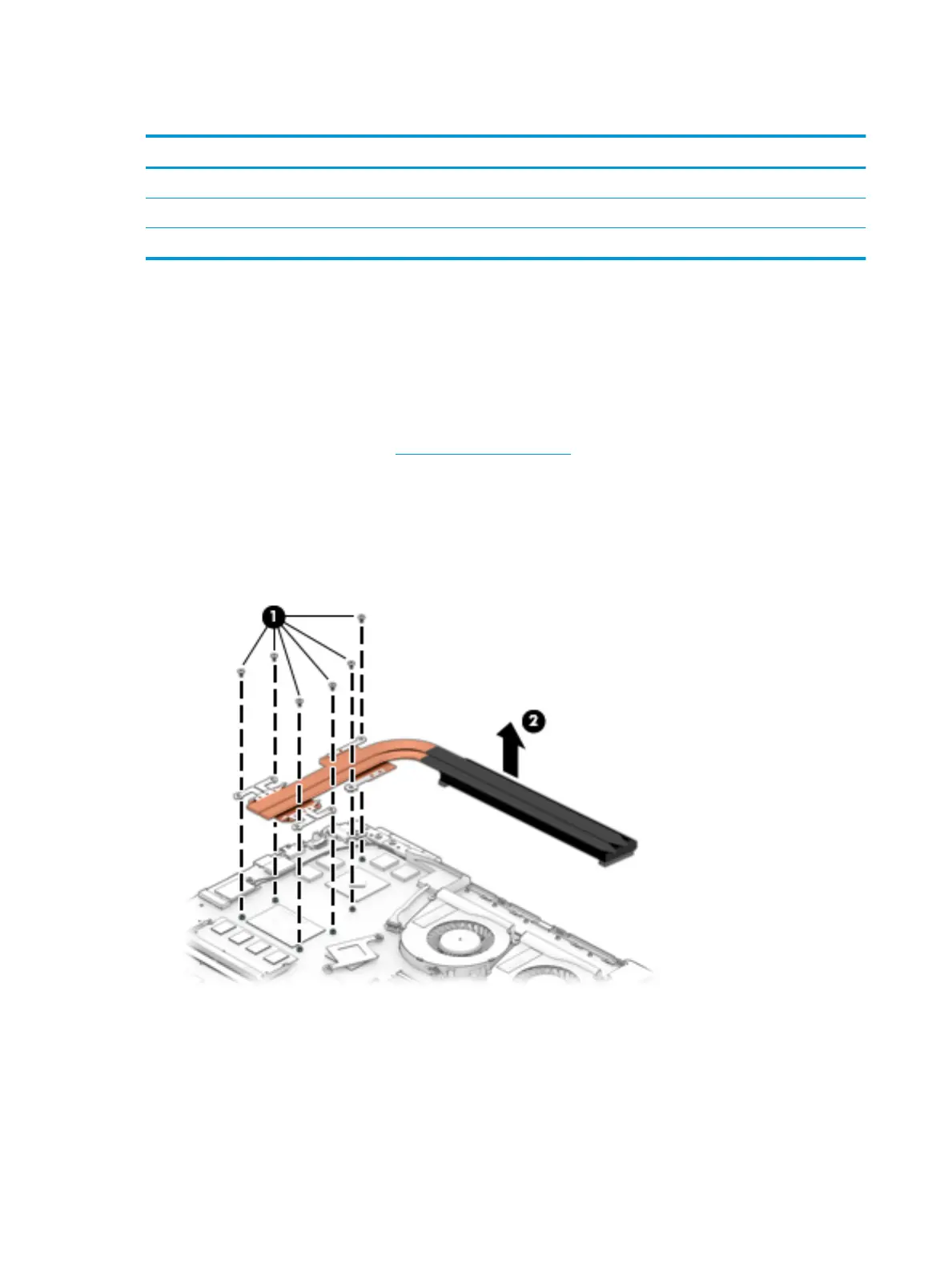

1. Remove the 6 Phillips M2.0 screws (1) and then carefully lift the heat sink (2) to remove it from the
system board.
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
