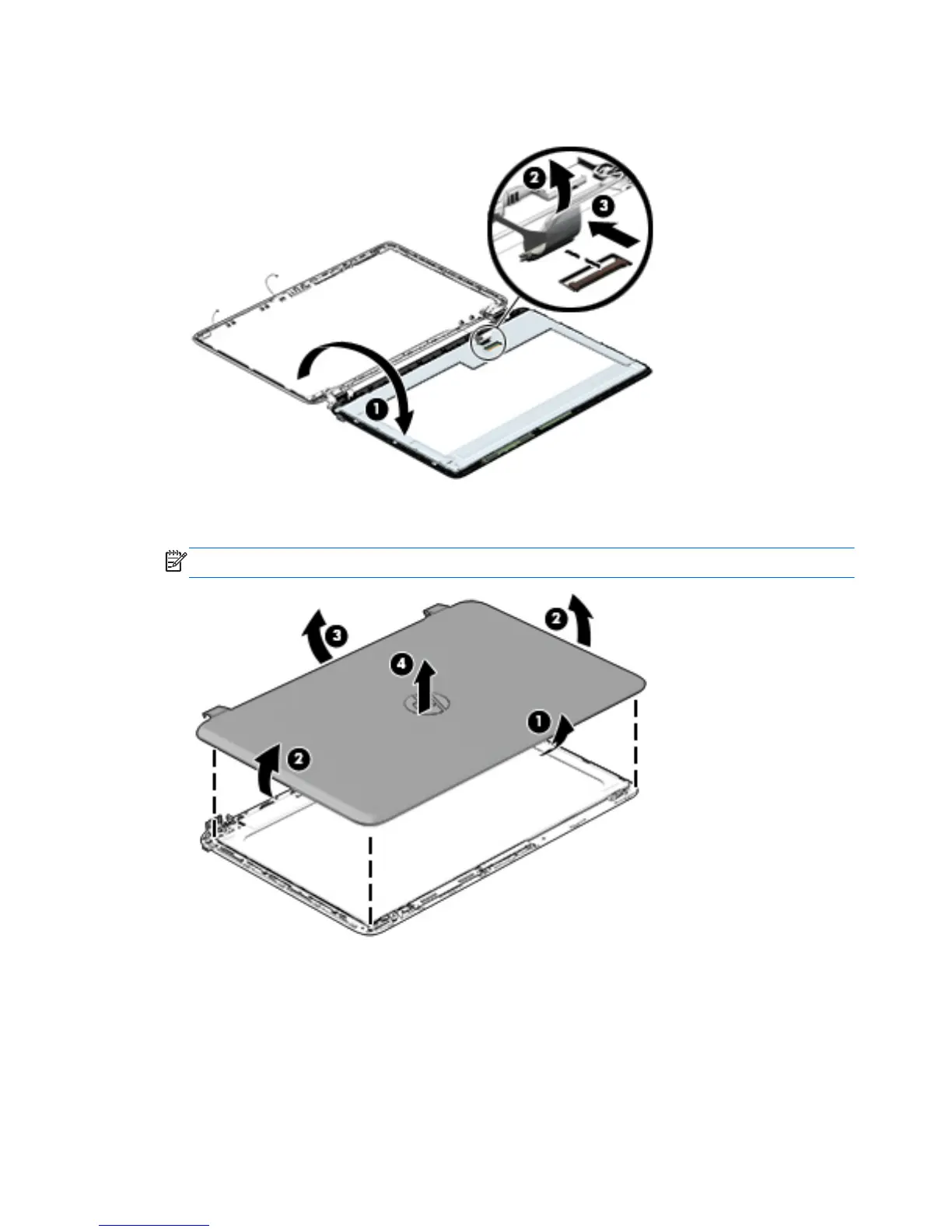

6. Open the panel cover (1), swivel the display panel hinges (2) on both sides and then tilt up the
display panel hinge (3) to release it.
7. Loosen the edges of the back cover (1), (2), and (3) from all four sides of the display bezel and
lift the display panel (4).
NOTE: Use a sharp probe to pop the covers out to avoid scratching the bezel.
92 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
