4. Remove the heat sink (2).

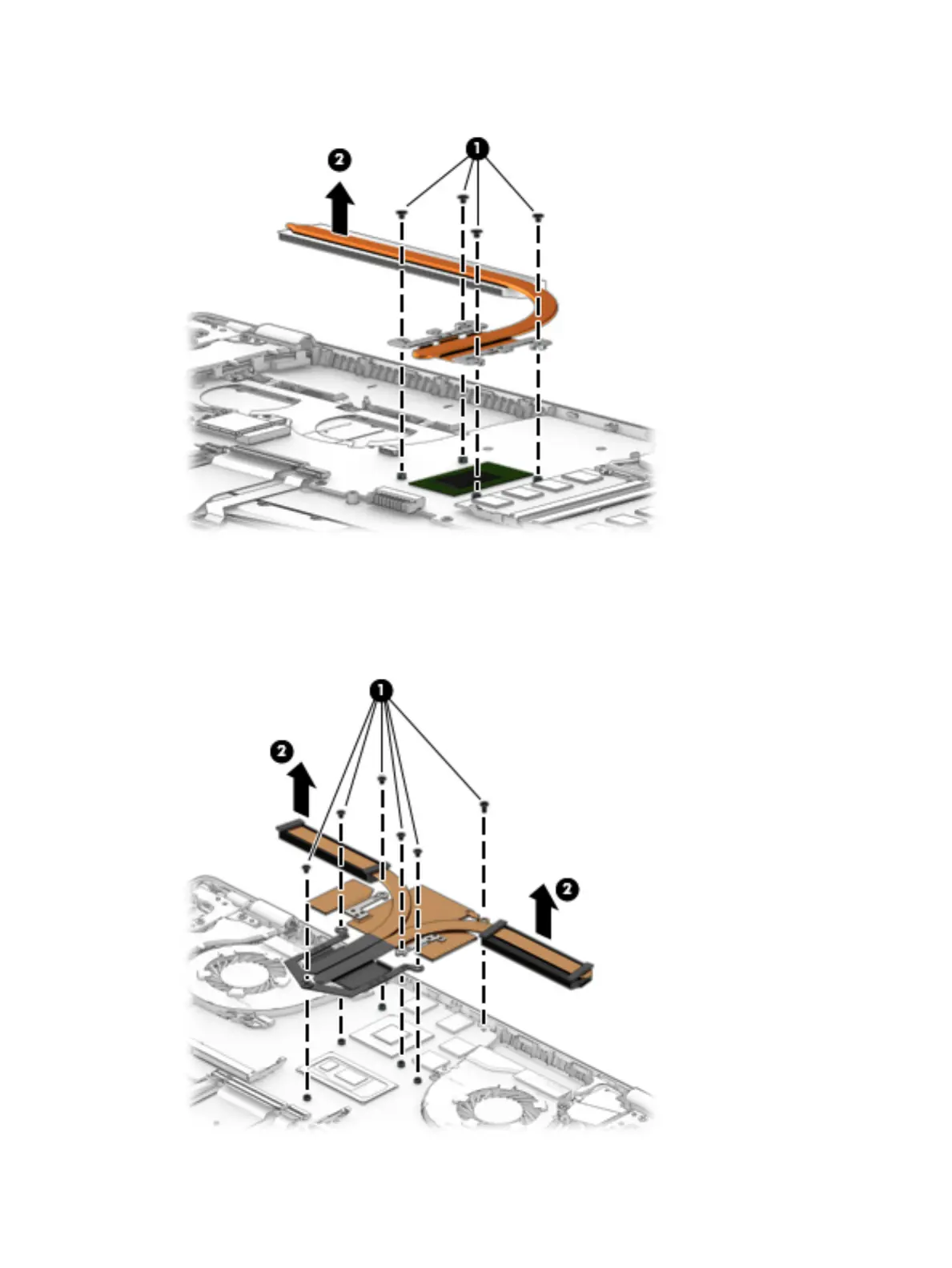

On models equipped with GTX graphics, follow these instructions to remove the heat sink:
1. In the order indicated on the heat sink, remove the six Phillips M2.0 × 2.5 screws (1) that secure the heat
sink to the system board.
2. Remove the heat sink (2).
68 Chapter 5 Removal and replacement procedures for authorized service provider parts
