Video input
with audio

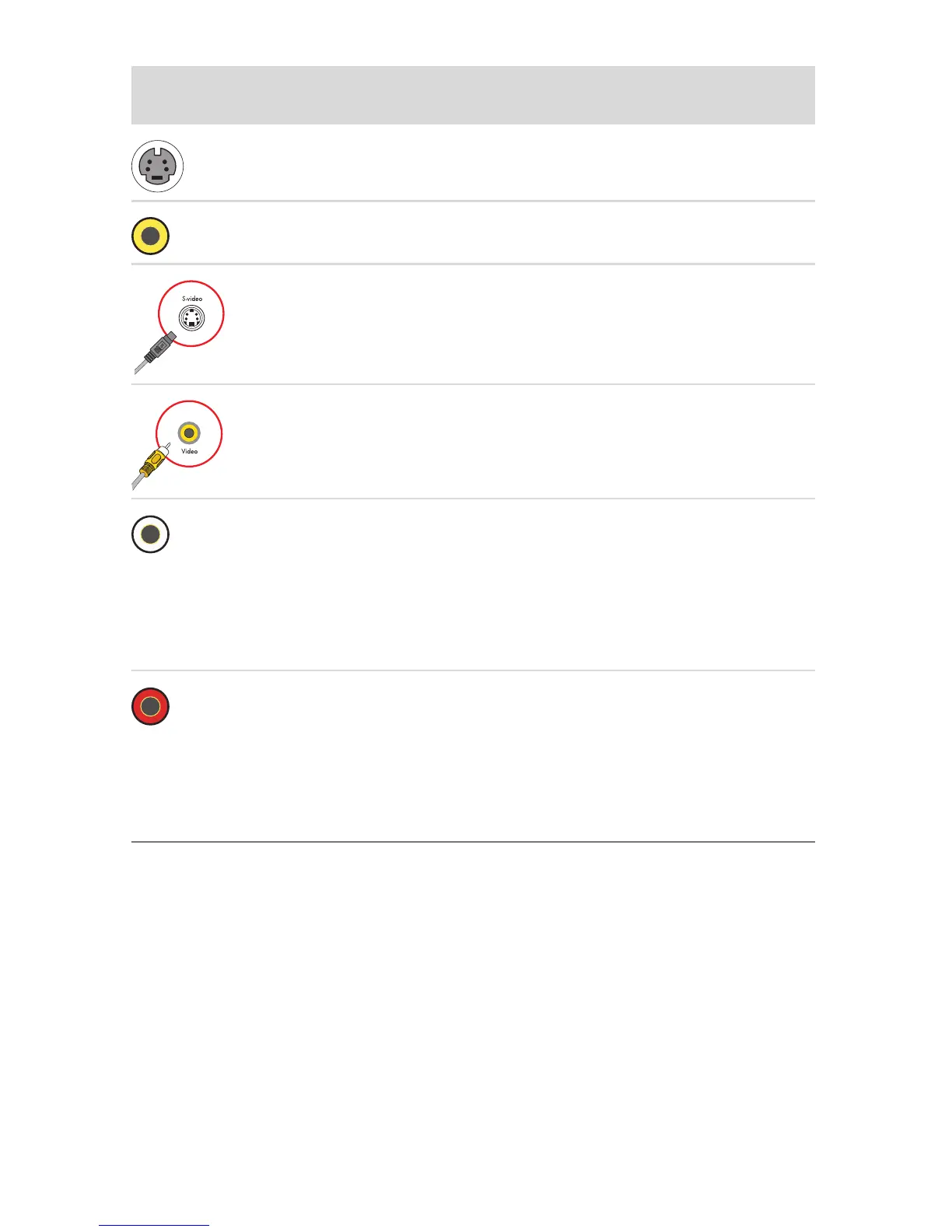

Icon/Label Description and function
S-Video S-video In connector to connect video input from a
TV set-top box output connector.
Composite
Video
Composite Video In connector (yellow) to connect
video input from a TV set-top box.
S-Video 2 Secondary S-video connector to connect video input
from a VCR, video camera, or other analog video
source to the computer.
Composite
Video 2
Secondary composite video connector (yellow) to
connect video input from a VCR, video camera, or
other analog source to the computer.
A/V In
Audio 1 L
Primary left audio input from a TV set-top box
connector (white).
NOTE: You can record audio by using this Audio In
connector, which is connected to the motherboard.
Some computers include this primary left audio input
connector on the front of the computer
(select models only).
A/V In
Audio 1 R
Primary right audio input from a TV set-top box
connector (red).
NOTE: You can record audio by using this Audio In
connector, which is connected to the motherboard.
Some computers include this primary right audio
input connector on the front of the computer (select
models only).
