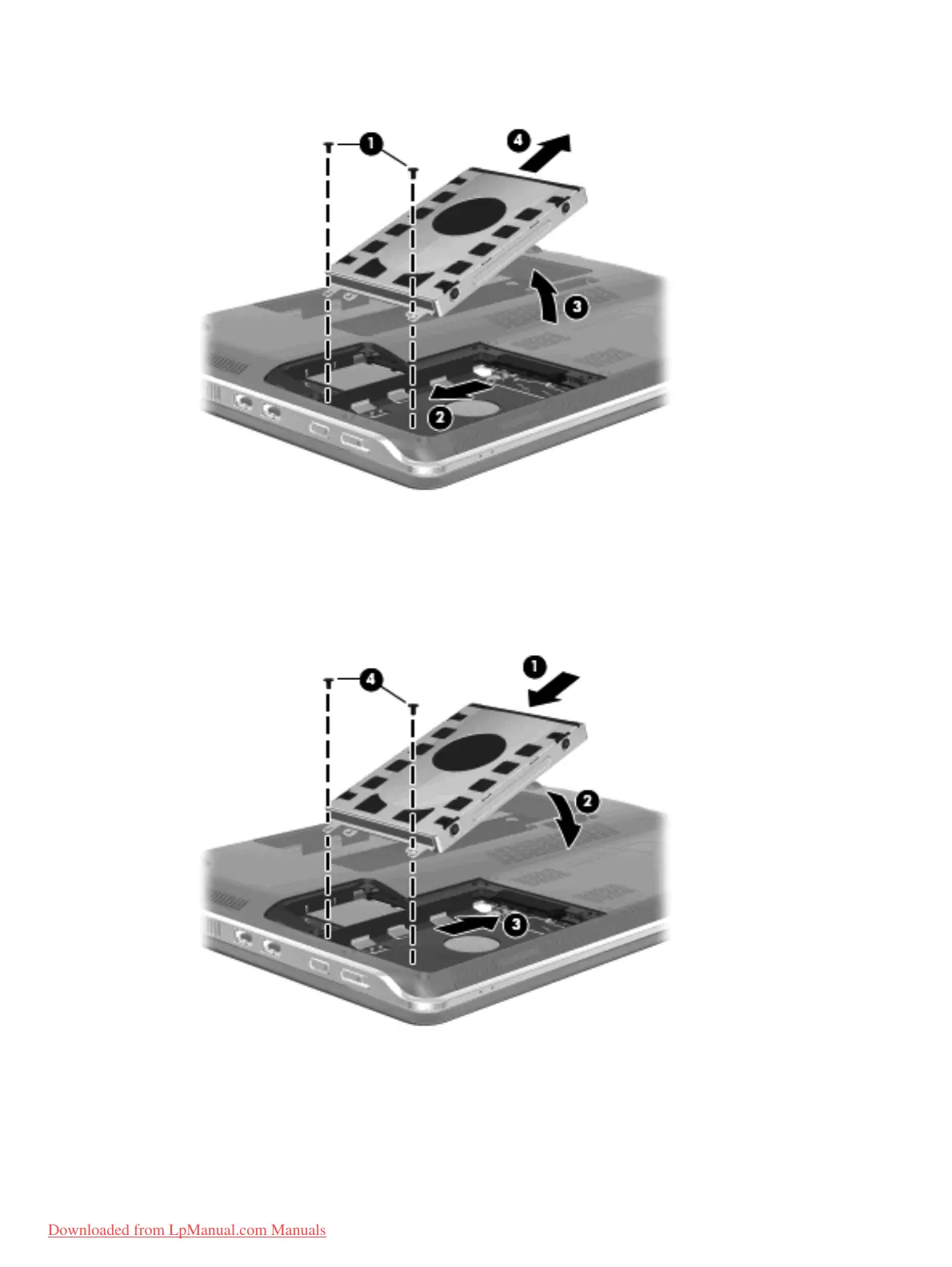

11. Pivot the hard drive upward (3) and lift the hard drive out of the hard drive bay (4).
To install a hard drive:
1. Insert the hard drive into the hard drive bay (1).
2. Pivot the hard drive downward (2), and then slide the hard drive (3) to the right until the hard drive
snaps into place.
3. Tighten the 2 screws (4) that secure the hard drive to the computer.
4. Align the tabs (1) on the hard drive cover with the notches on the computer.
5. Close the cover (2).
Drives 57
