c.

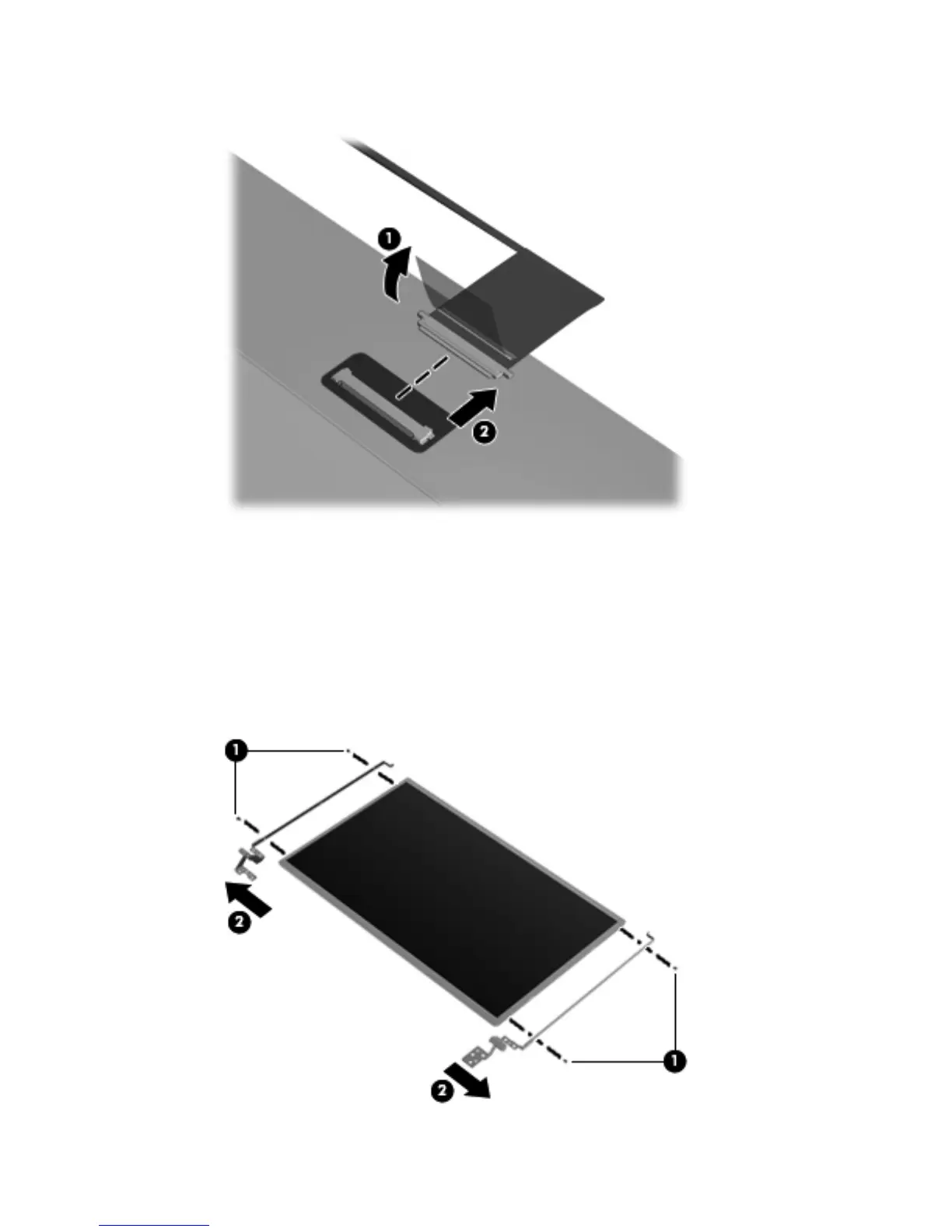

Disconnect the display panel cable (2) from the display panel.
d. Remove the display panel cable. The display panel cable is available using spare part
number 650455-001.
9. If it is necessary to replace the display hinges:
a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to the
display panel.
b. Remove the display hinges (2). The display hinges include the display hinges and brackets
and are available using spare part number 650461-001.
96 Chapter 4 Removal and replacement procedures
