Removal and Replacement Procedures
Maintenance and Service Guide 5–55

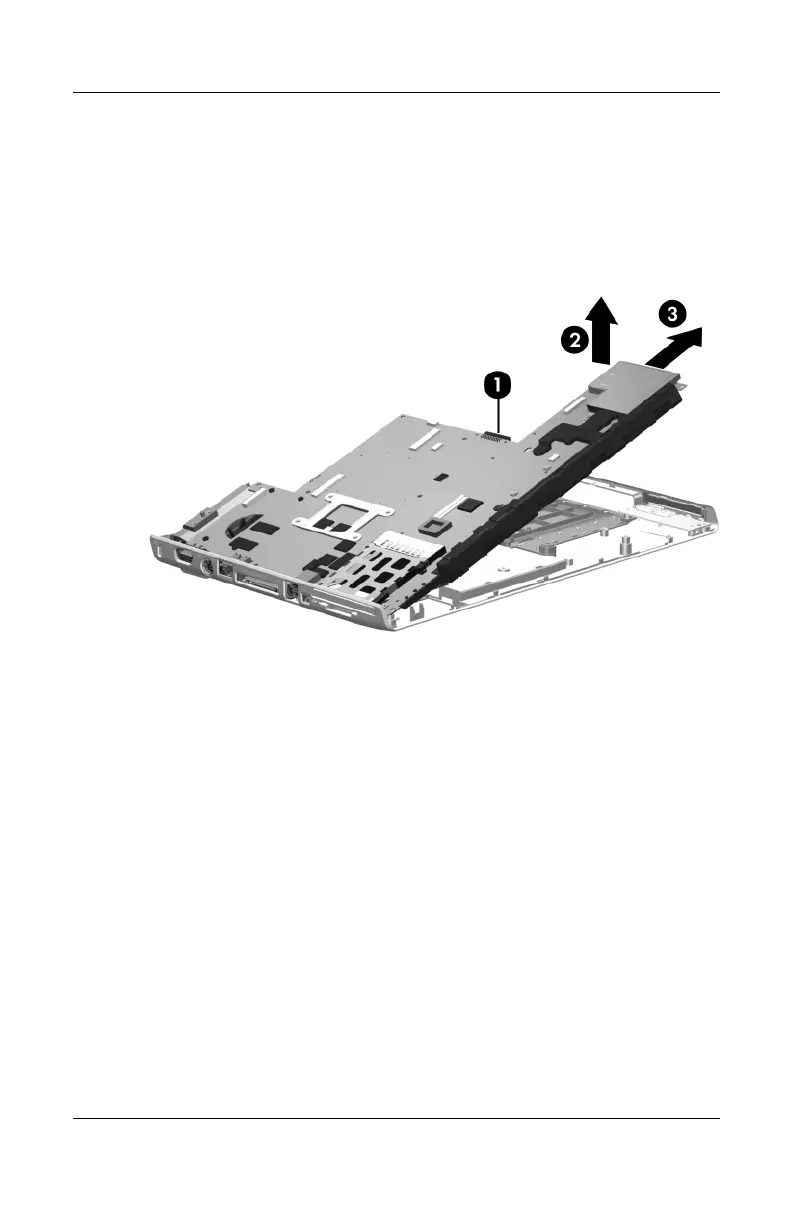

12. Use the optical drive connector 1 to lift the right side of the
system board 2 until it is clear of the base enclosure.
13. Slide the system board 3 to the right at an angle and
remove it.
Removing the System Board
