7.

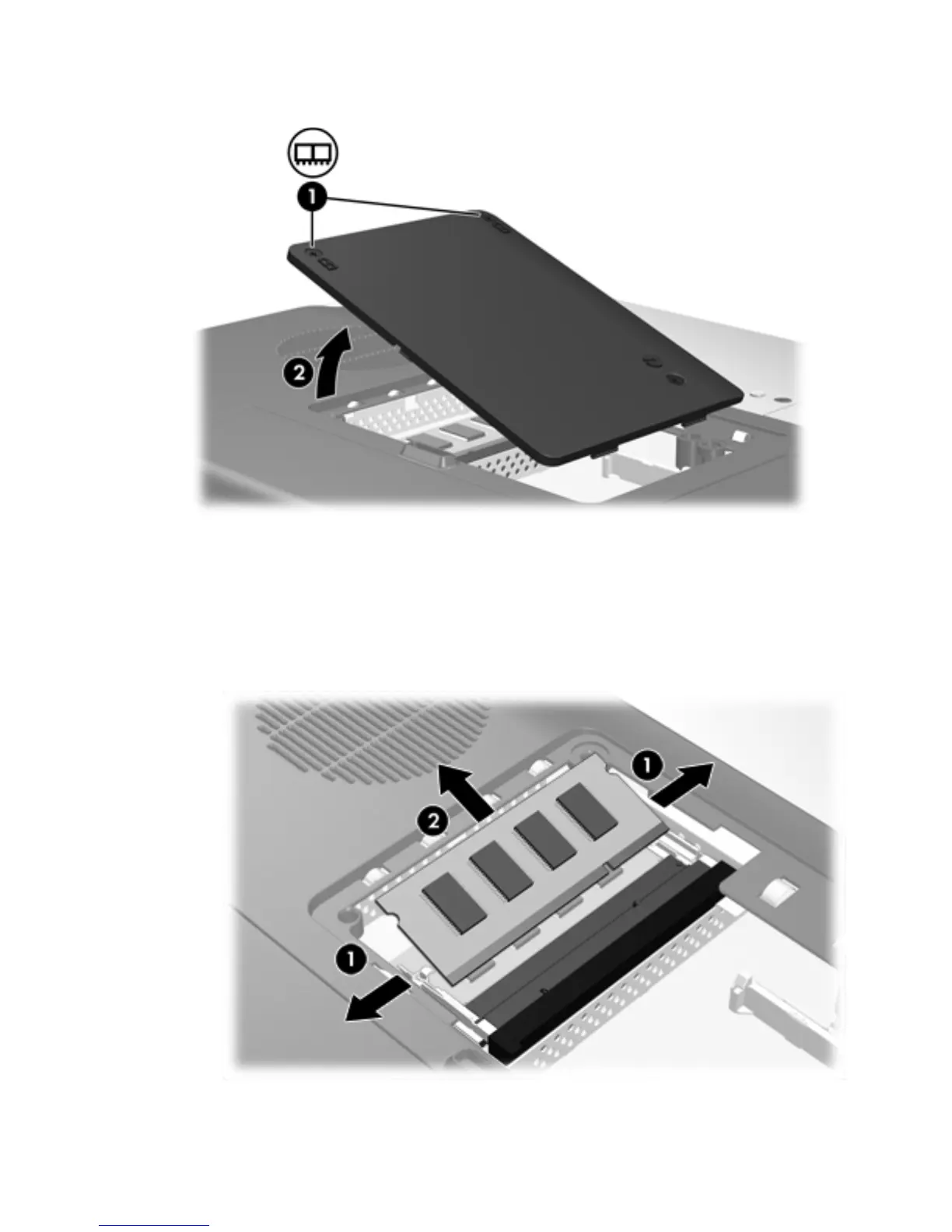

Lift the memory module compartment cover (2) away from the computer.
8. To remove a memory module:
a. Pull away the retention clips (1) on each side of the memory module . (The memory
module tilts up.)
b. Grasp the edge of the memory module (2) and gently pull the module out of the memory
module slot. (To protect a memory module after removal, place it in an electrostatic-safe
container.)
108 Chapter 8 Memory Modules ENWW
