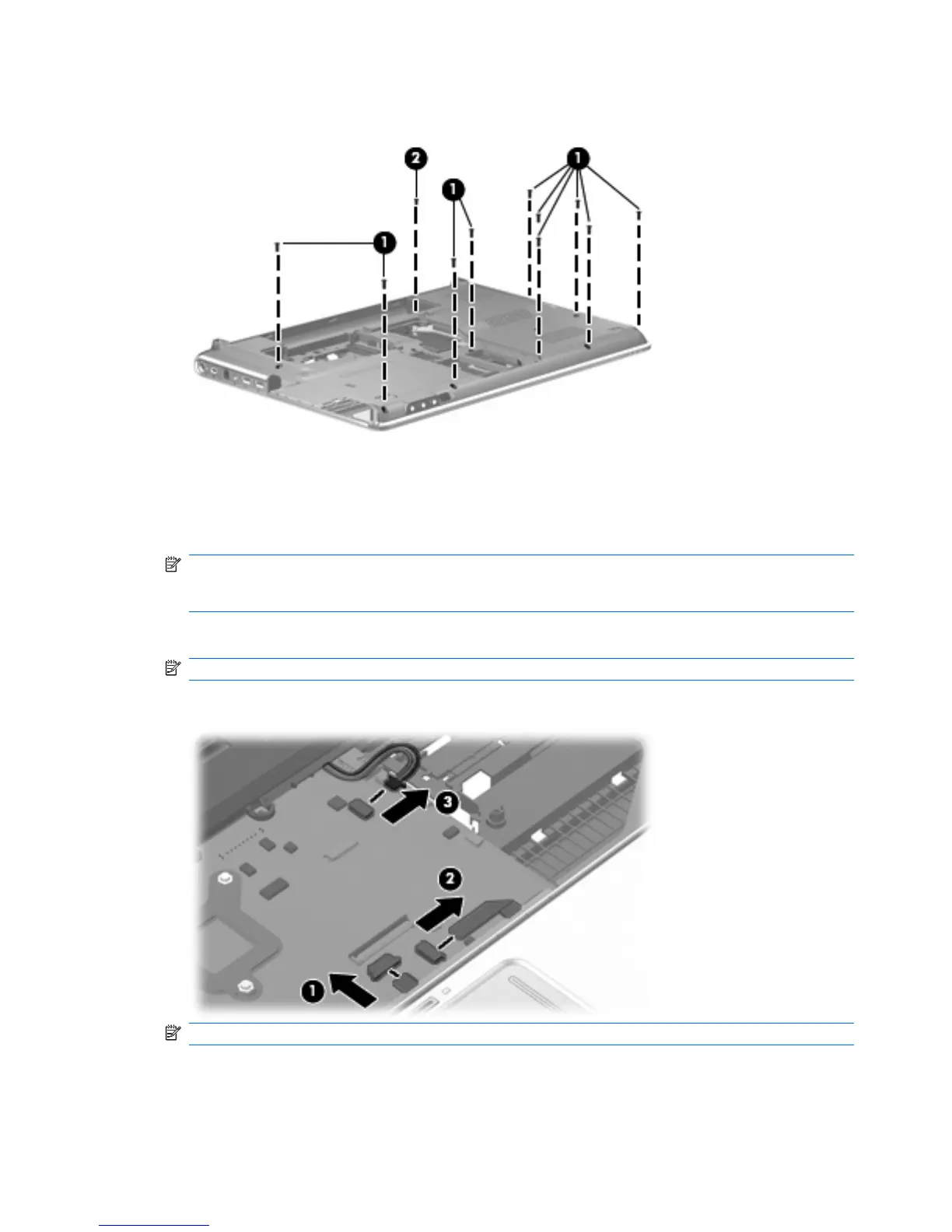

3. Remove one Phillips PM2.5×4.0 screw (2) that secures the top cover to the computer. This screw
is in the battery bay.
4. Turn the computer right-side up, with the front toward you.
5. Disconnect the following cables from the system board:
(1) TouchPad cable
NOTE: On computer models equipped with a standard display assembly, this cable connects to
a ZIF connector on the system board. On computer models equipped with a Flush Glass display
assembly, this cable connects to a LIF connector on the system board.
(2) Fingerprint reader board cable
NOTE: This cable connects to a LIF connector on the system board.
(3) Speaker cable
NOTE: Step 6 applies only to computer models equipped with standard display assemblies.
92 Chapter 4 Removal and replacement procedures
