TV tuner module cable
NOTE: The TV tuner module cable is available in the Cable Kit, spare part number 512832-001.
Before removing the TV tuner module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC Adapter from the computer.
4. Remove the battery (see
Battery on page 59).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 69).
b. Optical drive (see
Optical drive on page 62).
c. Switch cover and keyboard (see
Switch cover and keyboard on page 76).
d. Display assembly (see
Display assembly on page 81).
e. Top cover (see
Top cover on page 91).
f. USB board (see
USB board on page 98).
g. System board (see
System board on page 101).

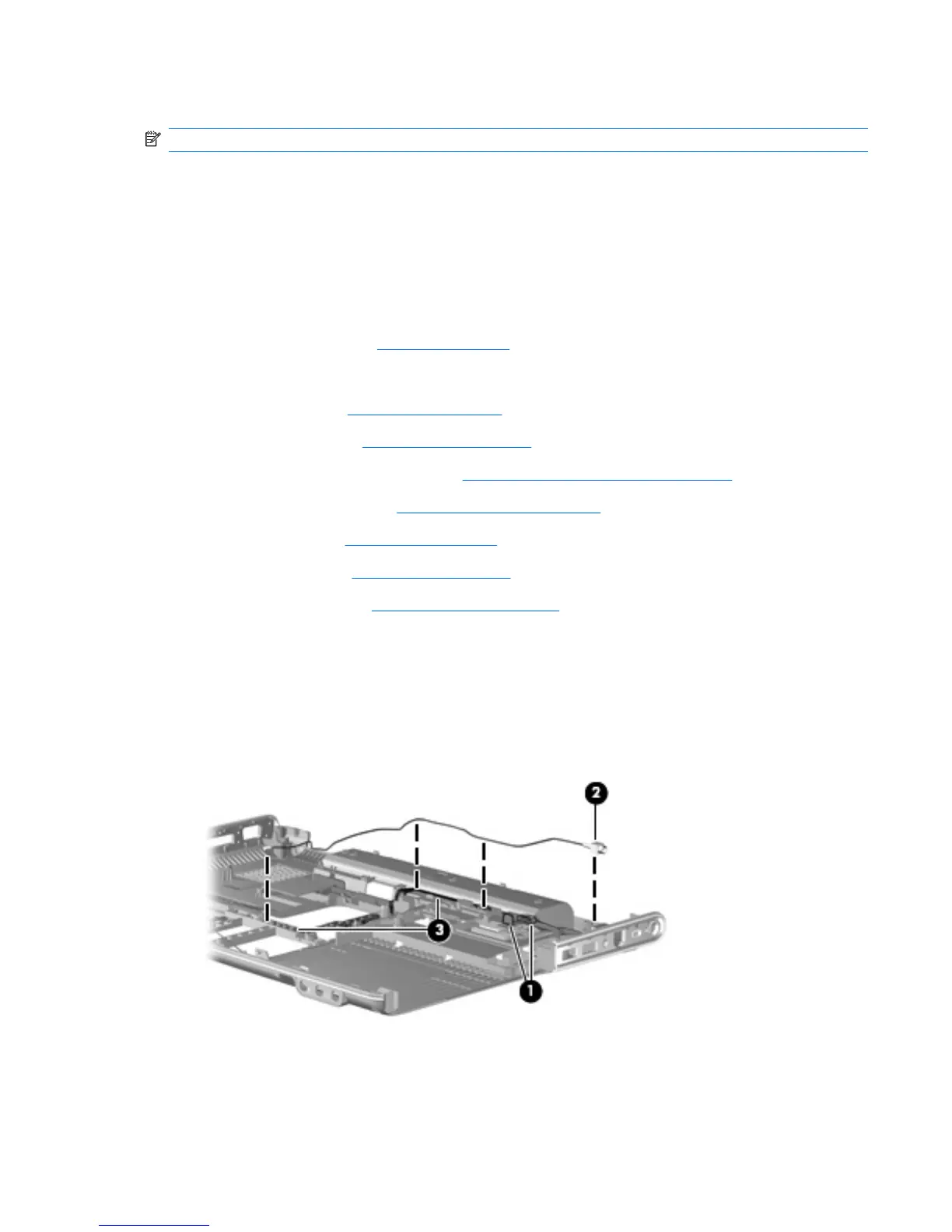

Remove the TV tuner module cable:
1. Release the clips (1) built into the base enclosure that secure the TV tuner antenna connector.
2. Remove the TV tuner antenna connector (2) from the clip built into the base enclosure.
3. Remove the TV tuner module cable (3) from the clips and routing channel built into the base
enclosure.
Reverse this procedure to install the TV tuner module cable.
Component replacement procedures 103
