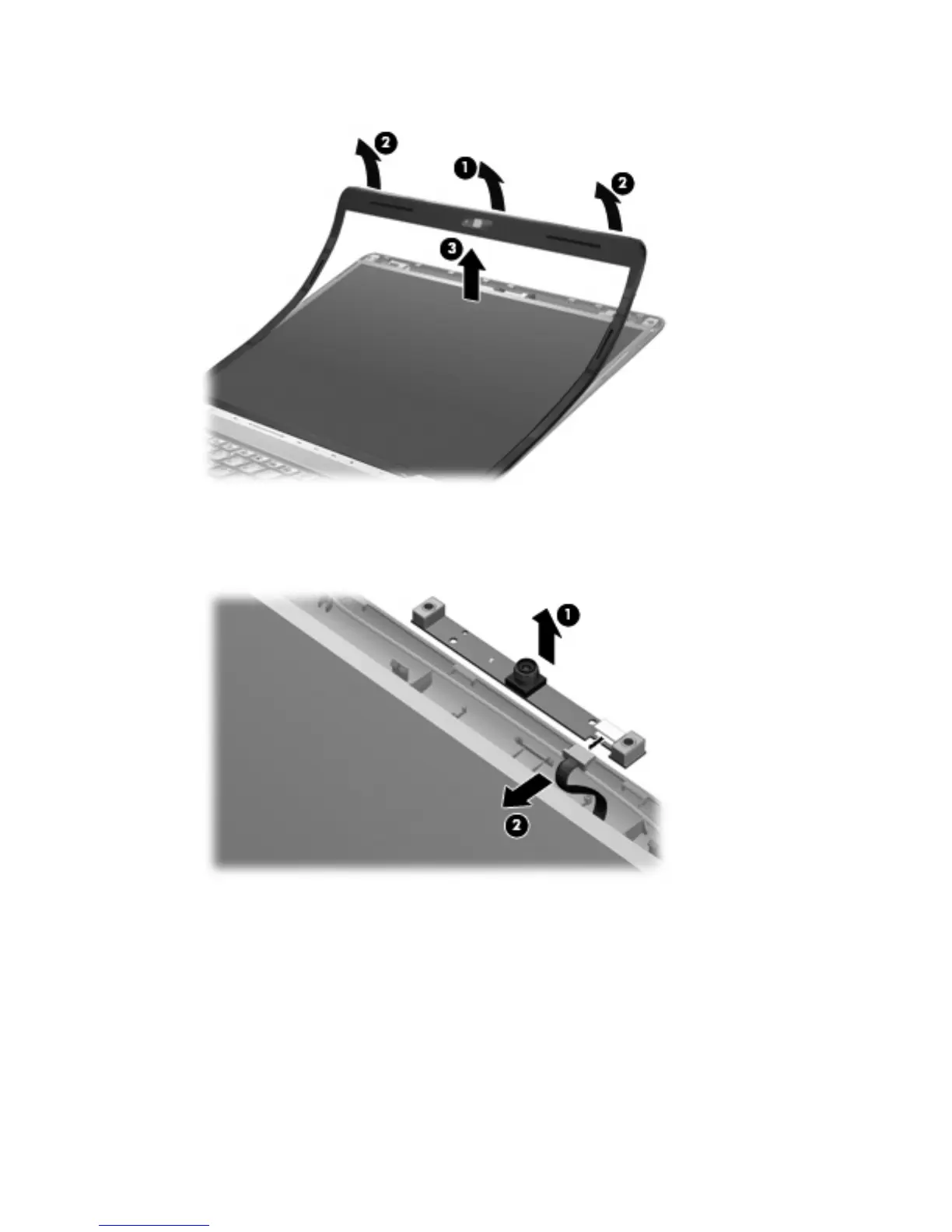

4. Release the display bezel top edge (3) from the display enclosure.
5. Release the webcam/microphone module (1) from the display enclosure as far as the webcam/
microphone module cable allows.
6. Disconnect the webcam/microphone module cable (2) from the webcam/microphone module.
7. Remove the webcam/microphone module.
Reverse this procedure to install the webcam/microphone module.
Component replacement procedures 61
