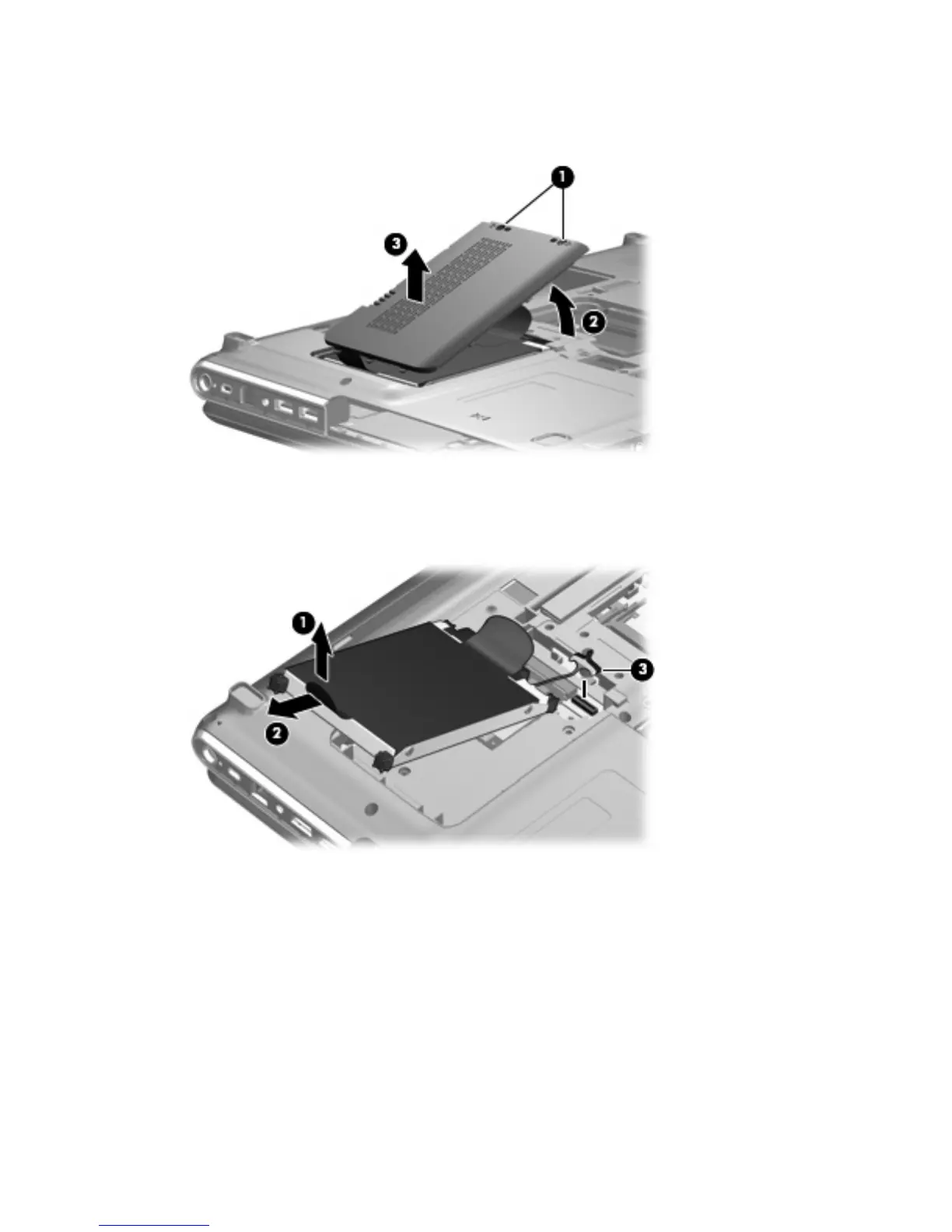

3. Lift the right side (2) of the hard drive bay cover, swing it up and to the left, and remove the
cover (3). The hard drive bay cover is included in the Plastics Kit, spare part number
511890-001.
4. Use the Mylar tab (1) to lift the hard drive up, and then slide it to the left (2) to release it from the
hard drive bay.
5. Disconnect the hard drive cable (3) from the system board.
6. Remove the hard drive from the hard drive bay.
70 Chapter 4 Removal and replacement procedures
