4–36 Maintenance and Service Guide
Removal and replacement procedures

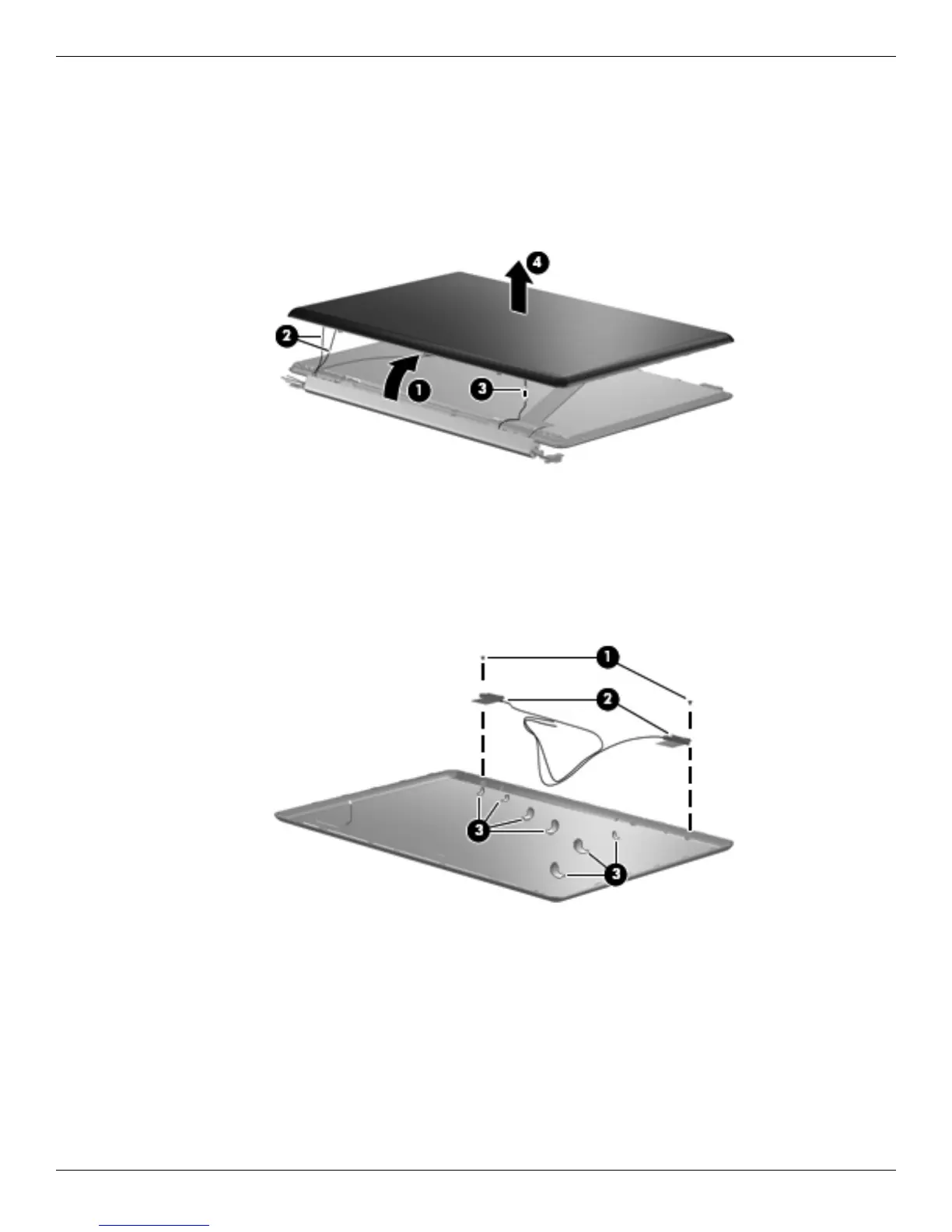

b. Turn the display assembly upside down, with the bottom edge toward you.
c. Release the display enclosure bottom edge 1 as far as the wireless antenna cables and display logo LED
cable allow.
d. Remove the wireless antenna cables 2 from the slot built into the display hinge cover.
e. Disconnect the display logo LED cable 3 from the display logo LED board.
f. Remove the display enclosure 4. The display enclosure is available using spare part number 577003-001.
8. If it is necessary to replace the wireless antenna transceivers and cables:
a. Remove the Phillips PM2.0×4.0 screw 1 that secures each transceiver to the display enclosure.
b. Detach the transceivers 2 from the display enclosure.
c. Release the retention tabs 3 built into the display enclosure, and remove the wireless antenna cables from
the tabs. The wireless antenna transceivers and cables are included in the Display Cable Kit, spare part
number 496876-001.
